WEG

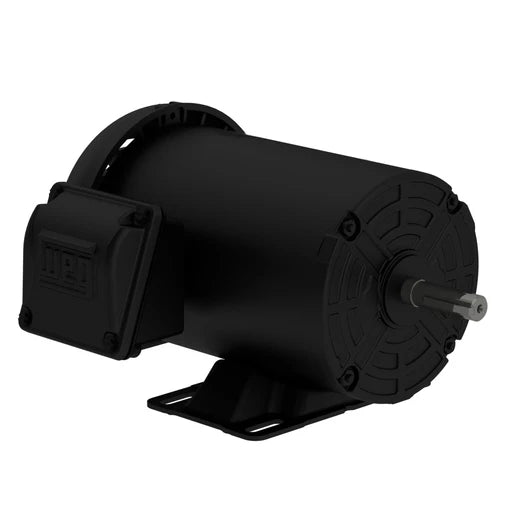

.2518ES3E56-S WEG Motor (0.25 HP, 1800 RPM, 3 Phase, 56 Frame, TEFC Enclosure, 208-230/460 Voltage)

.2518ES3E56-S WEG Motor (0.25 HP, 1800 RPM, 3 Phase, 56 Frame, TEFC Enclosure, 208-230/460 Voltage)

[COUNT] shoppers are looking at this right now

.2518ES3E56-S

$221.61 USD
$249.00 USD $221.61 USD
Sale Sold out
Shipping calculated at checkout.

WEG .2518ES3E56-S, 0.25 HP, 0.18 KW, 1800 RPM, 3 Phase, 56 Frame, TEFC Enclosure, 208-230/460 Voltage
Applications
These motors have a wide range of applications. Because of their high starting torque, they are particularly well-suited for heavy starting loads. They might be fitted with a C-Face as well as mounting feet for flexible mounting situations.
Features
Single Phase - Ball bearings and Class B Insulation
Three Phase - 50/60 Hz Rating; Ball bearings; Class B Insulation (ODP); Class F Insulation (TEFC)

Specifications

Brand
WEG
Catalog Number
.2518ES3E56-S
Type
Fractional Motor
HP
0.25
KW
0.18
RPM
1800
Phase
3
C Dimension
11.146
Service Factor
1.15
Frame
56
Enclosure
TEFC
Full Load Amps
0.52
Mount
Foot Mount
Voltage
208-230/460
Warranty
1 Year
