WEG

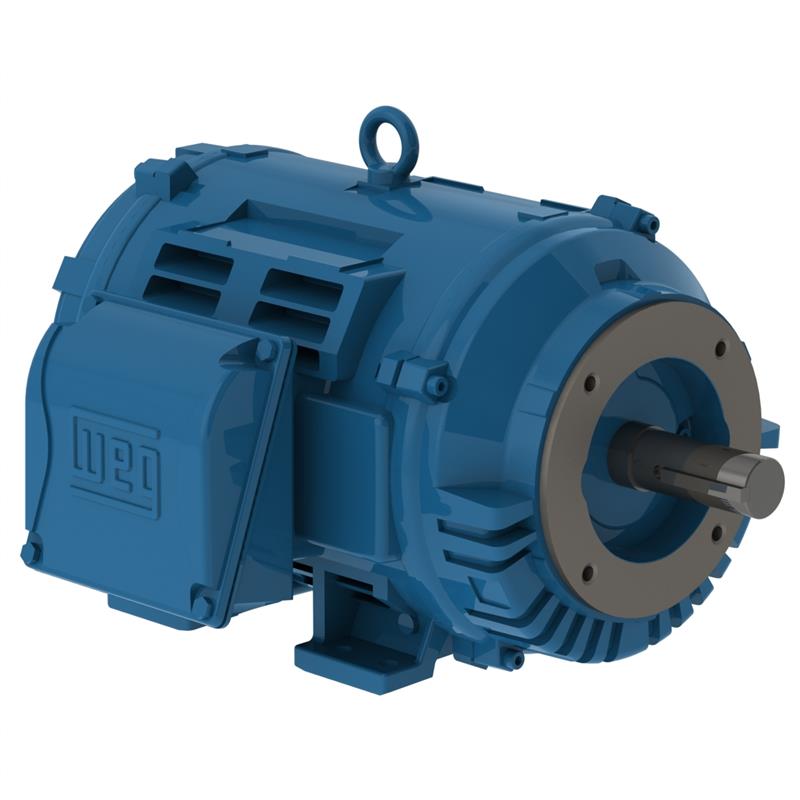

25036OT3G445TSC-W40 WEG Motor (250 HP, 3600 RPM, 3 Phase, 444/5TSC Frame, ODP, 460 Voltage, Foot Mount)
25036OT3G445TSC-W40 WEG Motor (250 HP, 3600 RPM, 3 Phase, 444/5TSC Frame, ODP, 460 Voltage, Foot Mount)
SKU:25036OT3G445TSC-W40
Regular price
$14,241.96 USD
Regular price
Sale price
$14,241.96 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 25036OT3G445TSC, 250 HP, 3600 RPM, 3 Phase, 444/5TSC Frame, ODP, 460 Voltage, Foot Mount,
| Applications | |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering lowvibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standardsand the minimum efficiency level programs in worldwide. | |
| Features | |
| Rated output: NEMA (60 Hz) - 15 to 2,500 HP | |
| Number of poles: 2 through 6 | |
| Frame sizes NEMA 254T to L6808/09 | |
| Frequency: 50 or 60 Hz | |
| Voltage: 208 to 4,160 V | |
| Degree of protection ODP (IP23) for frames 256T to L5810 WPI (IP24) for frame size L6808/09 | |
| Efficiency levels: NEMA Premium Efficiency (60Hz) | |
| 50/60 Hz rated up to 250 HP | |
| Stainless Steel Nameplate - Laser etched with high contrast background (Cast Iron Frames only) | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| Class B Rise at 1.15 Service Factor | |
Specifications | |
Brand |
WEG |
Catalog Number |
25036OT3G445TSC |
Type |
General Purpose C-Face Motor |
HP |
250 |
RPM |
3600 |
Phase |
3 |
Frame |
444/5TSC |
Enclosure |
ODP |
Voltage |
460 |
Full Load Amps |
272 |
Full Load Efficiency |
95 |
Frame Material |
Cast Iron |
Service Factor |
1.15 |
"C" Dimensions |
36.062 |
Mounting |
Foot Mount |
Warranty |
1 Year |
Support Documents (pdf) | ||||
