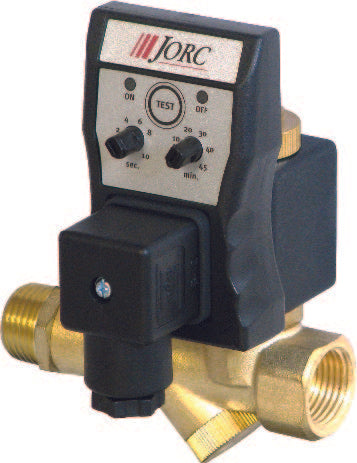

2503 JORC COMBO drains (230 VAC, 1/4" & 1/2" NPT Inlet, 1/2" NPT Outlet, 7ft Power Cord)

2503 JORC COMBO drains (230 VAC, 1/4" & 1/2" NPT Inlet, 1/2" NPT Outlet).  Includes 7ft power cord.

Timer controlled condensate drains for applications up to 230 psi.

The COMBO saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve and strainer.

The COMBO is designed to remove condensate from compressors, compressed air dryers and receivers up to 230 psi applications.

• 230V AC
• 1/4" Female & 1/2" Male NPT inlet & 1/2" NPT outlet
• Rated for 0-230 PSI (0-16 bar)
• Built-in mesh strainer provides protection
• Shut-off valve
• Dual inlet for more adaptability
• Won't air lock when in use
• TEST feature
• Precise timing
• Uses premium PCB components
• Serviceable valve

Specifications

• Dimensions- 5.016" Length x 3.695" Width x 3.518" Depth
• Max Compressor Capacity- Any Size
• Ambient Temperature- 34 F to 131 F (1 C to 55 C)
• Timer Cycle Range (On/Off)- 0.5-10 sec / 0.5-45 min
• Timer Current Consumption- 4mA max.
• Timer PCB- SMD Technology
• Timer Cycle Indication- LEDs
• Valve Type- 2/2 Way, Direct Acting
• Valve Opening- 4mm (0.157")
• Valve Seals- FPM
• Inlet Connection Height- 10mm (0.4")
• Timer Housing Material- ABS Plastic FR Grade
• Valve Housing Material- Brass
• Power Connection- DIN 43650 Form A
• Environmental Protection- NEMA 4 (IP 65)
