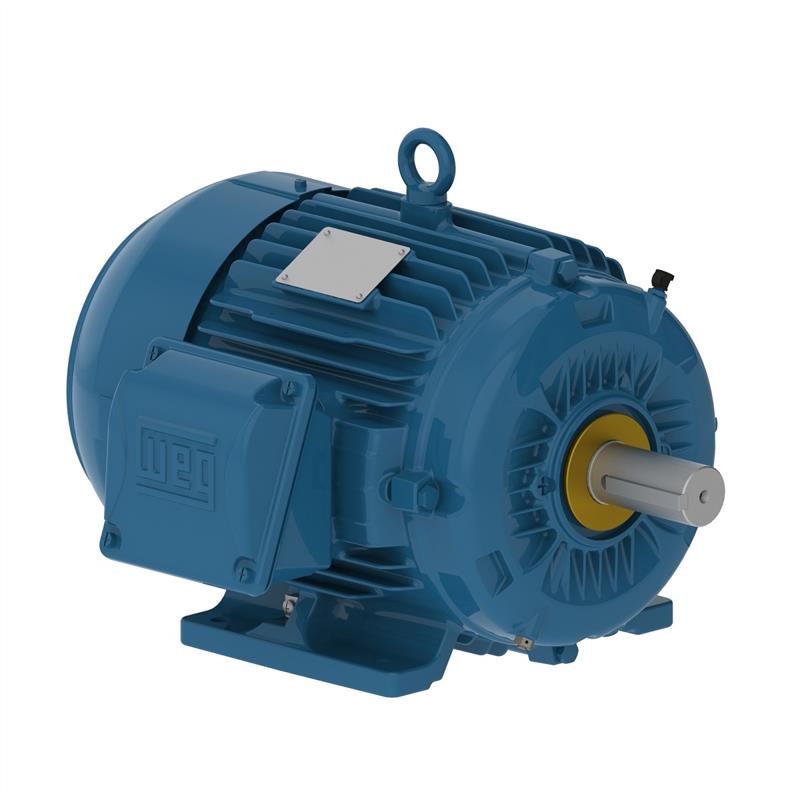

25012ST3QIE449T-W22 WEG Motor (250 HP, 1200 RPM, 3 Phase, 447/9T Frame, TEFC Enclosure, 460 Voltage)

25012ST3QIE449T-W22 WEG Motor (250 HP, 1200 RPM, 3 Phase, 447/9T Frame, TEFC Enclosure, 460 Voltage)

[COUNT] shoppers are looking at this right now

25012ST3QIE449T-W22

$35,079.35 USD
$39,415.00 USD $35,079.35 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

WEG 25012ST3QIE449T-W22, 250 HP, 185 KW, 1200 RPM, 3 Phase, 447/9T Frame, TEFC Enclosure, 460 Voltage

Applications
WEG's IEEE841 motors are specially suited for Pulp & Paper mills, Steel mills, ical Plants and diverse demanding applications requiring severe duty long life motors. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.
Features
Class F insulation (Impregnation Resin and magnet wire are class H)
F1 Mounted (F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter
Stainless Steel Nameplate - Laser etched with high contrast background
All frames with regreasable ball bearings

Specifications

Brand
WEG
Catalog Number
25012ST3QIE449T-W22
Type
Motors
HP
250
KW
185
RPM
1200
Phase
3
C Dimension
56.338
Service Factor
1.15
Frame
447/9T
Enclosure
TEFC
Full Load Amps
292
Mount
Foot Mount
Voltage
460
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
