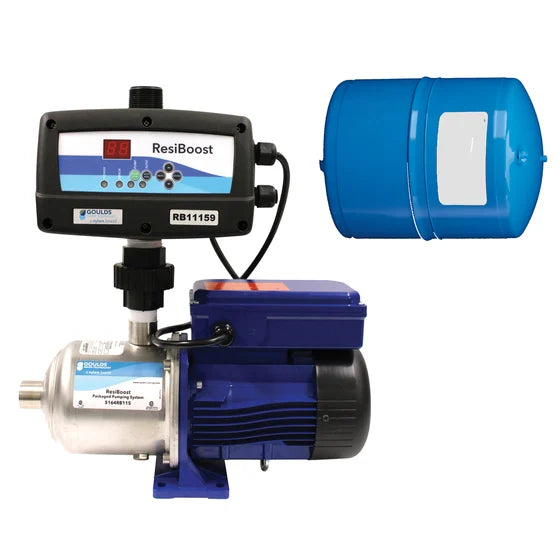

2294RB115 Goulds ResiBoost Series, Booster System with Tank, Indoor/Outdoor Controller (115V, 1 Phase Input) and e-HM Pump, 1 HP, 115 Volts, 1 Phase, 1-1/4" NPT Suction, 1-1/4" NPT Discharge, 3 Stages, 45 GPM Max, 105 ft Max Head

2294RB115 Goulds ResiBoost Series, Booster System with Tank, Indoor/Outdoor Controller (115V, 1 Phase Input) and e-HM Pump, 1 HP, 115 Volts, 1 Phase, 1-1/4" NPT Suction, 1-1/4" NPT Discharge, 3 Stages, 45 GPM Max, 105 ft Max Head.

Goulds ResiBoost Booster System

The ResiBoost constant pressure system provides an economical solution for municipal water users that suffer from low pressure. It can also be used for applications requiring re-pressurizing water from a storage tank. As your household water needs change, our drive will change the speed of the motor to accommodate the need.

Package includes:

• eHM pump (1HP, 1/60/115, 3 stages)
• Diaphragm tank (2 liters)
• Variable speed controller (1/60/115/12A)
• Check valve

Features

• Comes with pump, motor and controller assembled
• Tank is included separate from assembly for shipping. Plug and Play compact system
• Rated within the working limits of the motor as recommended by the motor manufacturer
• Pump can be operated continuously without damage to the motor
• e-HM stainless steel pump with small footprint designed for longer life
• 147 psi maximum pump operation pressure
• VFD built-in protection against various system and electrical faults
• Comes with internal transducer with digital indicator, additional parts not necessary
• Precise speed control to operate pump for best energy efficiency
• Built with a uniquely designed fitting including a spring loaded check valve
• Built-in memory to store data - operating hours, number of starts, connection to the power supply, faults

Controller Features

• Input power - single phase 115V
• Output power - single phase 115V
• Pre-programmed
• HMI with push button control
• Red LED signal lights
• Protection against no water, motor over current, open lead, low system pressure, over heating, short circuit, over voltage, under voltage
• 32º - 122ºF temperature
• CCSAUS, NSF approved
• Type 3 enclosure
• 115 V plug (NEMA 5-15) power lead
