U.S. Motors

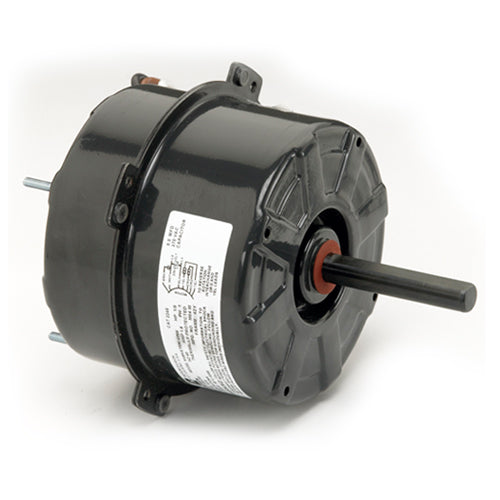

2243 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/10 HP, 208-230 Volts, 1075 RPM)
2243 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/10 HP, 208-230 Volts, 1075 RPM)
[COUNT] shoppers are looking at this right now
SKU:2243
Regular price
$189.61 USD
Regular price
$0.00 USD
Sale price
$189.61 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 2243, HP: 1/10, RPM: 1075, Volts: 208-230, Amps: 0.75, Total C: 6.8, OEM Direct Replacement: -, Enclosure: TEAO, Type: "Clam Shell" Single Speed, Stud Mount, Without Capacitor (Fig A),
| Applications | |
| Designed to meet manufacturer's requirements for fans & blowers. | |
| Features | |
| Four 8-32 x 3/4 Stud Extensions At Each End | 12 Leads |
| Ball Bearings Have All Angle Thrust System | Automatic Reset Thermal Overload Protector |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
2243 |
HP |
1/10 |
RPM |
1075 |
Volts |
208-230 |
Bearings |
SAB |
Amps |
0.75 |
Cap. MFD |
5 |
Shaft N |
2.7 |
Apx. Wt. (lb) |
9 |
Shell XI |
4.1 |
Total C |
6.8 |
OEM Direct Replacement |
- |
Enclosure |
TEAO |
Type |
"Clam Shell" Single Speed, Stud Mount, Without Capacitor (Fig A) |
Support Documents (pdf) | ||||
| Product Literature | ||||
