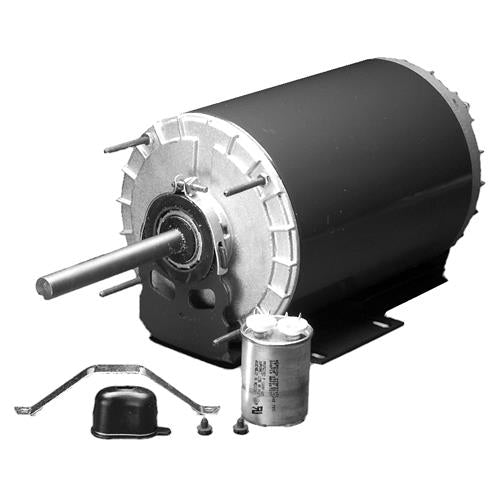

2193 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 208-230/460V)

2193 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 208-230/460V)

[COUNT] shoppers are looking at this right now

2193

$717.06 USD
$0.00 USD $717.06 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 2193, HP: 3/4, RPM: 1075, Volts: 208-230/460, Shaft N: 4.1, Shell XI: 7.8, Total C: 13.1, Diameter: 6.3" Diameter, For use on condenser cooling fans
Applications
For use on condenser cooling fans in commercial air conditioning applications.
Features
• Capacitor and Outlet Box Included, unless noted • 40C Ambient
• Reversible Rotation • Dual Voltage
• Double-Sealed Ball Bearings • Class B Insulation
• Continuous Duty, Air Over • Automatic Reset Thermal Overload Protector

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
2193
HP
3/4
RPM
1075
Volts
208-230/460
Bearings
Ball
Amps
4.8/2.5
Cap. MFD
30
Shaft N
4.1
Apx. Wt. (lb)
41
Shell XI
7.8
Total C
13.1
Diameter
6.3" Diameter
Stud YM
--
Mount
Resilient Base
Type
Permanent Split Capacitor Commercial Condenser Fan Motor
Replacement For:
Model # K63HXTPF-4856
