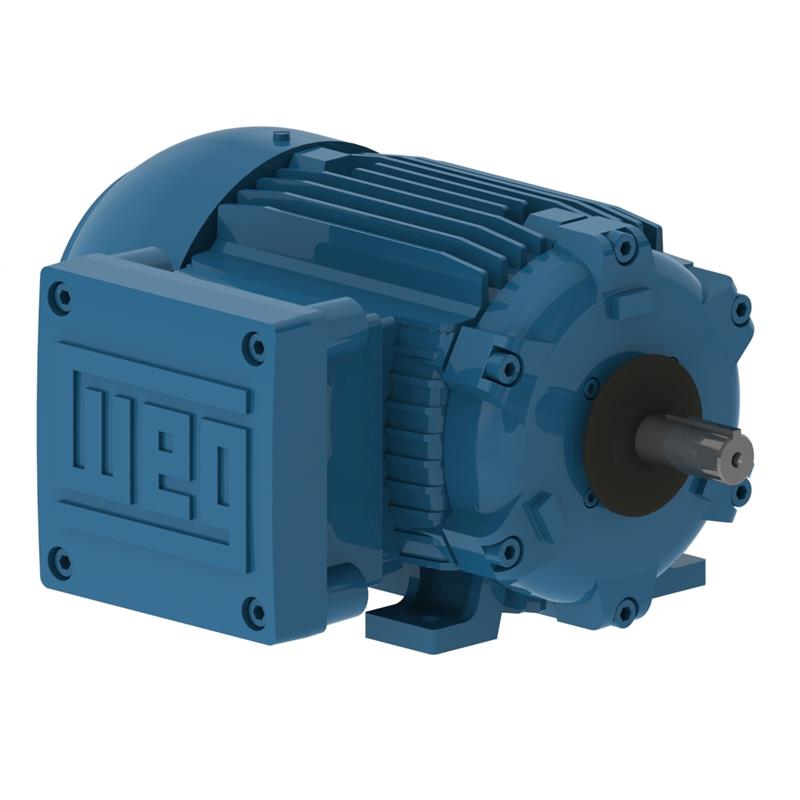

20018XT3G447T WEG Explosion Proof Motor (200 HP, 1800 RPM, 3 Phase, 447T Frame, 460 Voltage, Explosion Proof)

20018XT3G447T WEG Explosion Proof Motor (200 HP, 1800 RPM, 3 Phase, 447T Frame, 460 Voltage, Explosion Proof)

20018XT3G447T

$21,423.06 USD
$21,423.06 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 20018XT3G447T, Series, 200 HP, 150 KW, 1800 RPM, 3 Phase, 447T Frame, 460 Voltage, Explosion Proof

Applications
WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations.
Features
Class F insulation (Impregnation Resin and Magnet wire are class H)
F1 Mounted (Cast Iron frames are F2 convertible)
Stainless Steel Nameplate - Laser etched with high contrast background
All frames with regreasable ball bearings (Frames 364T and up)
CSA Approved - File LR50962
UL Listed - File E87848

Specifications

Brand
WEG
Catalog Number
20018XT3G447T
Type
Explosion Proof
HP
200
KW
150
RPM
1800
Phase
3
Service Factor
1.15
Frame
447T
Voltage
460
Enclosure
Explosion Proof
Mount
Foot Mount
Full Load Amps
230
Warranty
1 Year
