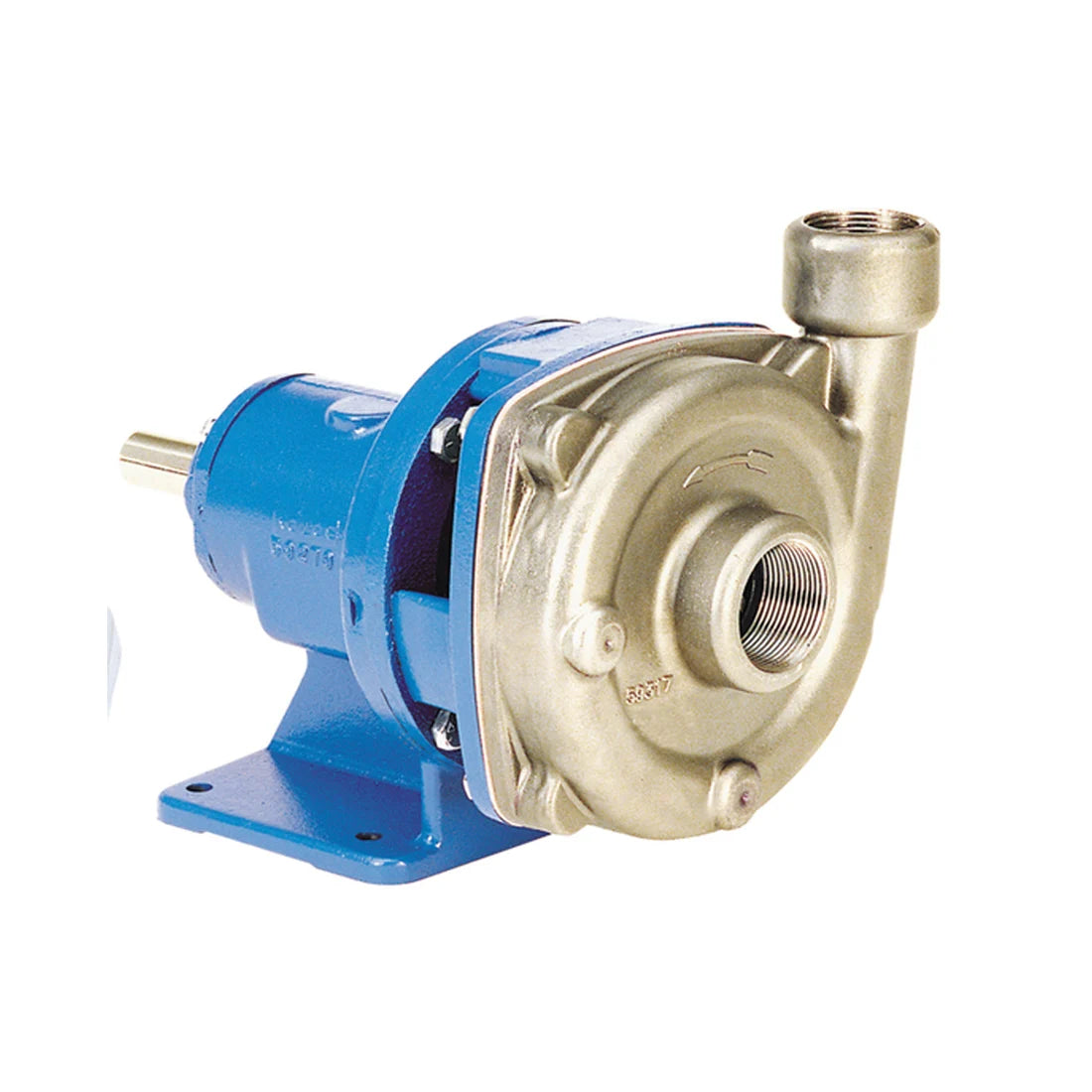

1SSFRMA0 Goulds Frame Mounted Centrifugal Pump End Only (ICS-F Series, 1/2 Max. Base HP at 1750 RPM, 3.5 Max. Base HP at 3500 RPM, 1" NPT Discharge, 1-1/4" NPT Suction, 5-3/8" Impeller, Stainless Steel Body, Motor Not Included)

1SSFRMA0 Goulds Frame Mounted Centrifugal Pump End Only (ICS-F Series, 1/2 Max. Base HP at 1750 RPM, 3.5 Max. Base HP at 3500 RPM, 1" NPT Discharge, 1-1/4" NPT Suction, 5-3/8" Impeller, Stainless Steel Body)

* Motor not included.

Features

• Precision investment cast 316 stainless steel liquid end components for corrosion resistance and strength
• Frame mounted design allows flexibility of installation and driver arrangements
• Open stainless steel impeller design allows spherical handling to 3⁄8” reducing chance of clogging and required maintenance time
• Back pull-out design simplifies maintenance by allowing the casing to remain in the piping during disassembly. Compact close-coupled design saves space and simplifies installation
• Casing is made of investment cast 316 stainless steel construction with NPT threaded suction and discharge, optional drain and vent with stainless steel plugs. Four position discharge orientation
• Standard Flowserve 31 mechanical seal with carbon versus silicon-carbide faces, Viton elastomers and 316 stainless steel metal parts. Optional seals are available for high temperature and mild abrasive services

• Designed for ultra pure water, chemical and general services. Specific uses are for:
  • Washer equipment
  • Ultra pure water systems
  • Scrubbers
  • Chemical transfer
  • Water reclamation and treatment
  • Beverage processing
  • Pharmaceutical service
