Goulds Pumps

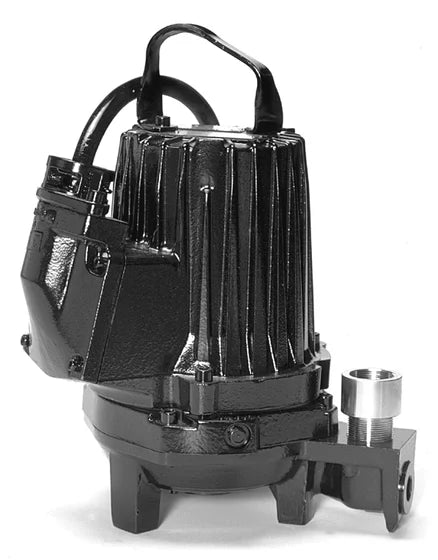

1GA81J3BDX Goulds Pumps Explosion Proof Submersible Grinder Pump (6 HP, 3 Phase, 230 Volts)
1GA81J3BDX Goulds Pumps Explosion Proof Submersible Grinder Pump (6 HP, 3 Phase, 230 Volts)
SKU:1GA81J3BDX
Regular price
$9,123.87 USD
Regular price
$14,173.00 USD
Sale price
$9,123.87 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Goulds Pumps 1GA81J3BDX, 1GA Series , 6 HP, 3 Phase, 230 Volts,
| Applications | |
| High head and pressure sewage systems for: Municipal, Commercial, Industrial. | |
| Features | |
| Design: Capable of grinding municipal, commercial and industrial sewage. | |
| Cutter System: Designed to reduce sewage to a fine slurry. | |
| Impeller: Cast iron, semi-open, non-overloading multivane design with pump-out vanes for mechanical seal protection. | |
| Casing: Cast iron, volute type for high efficiency. Adaptable for slide rail system. | |
| Paint: Two coat paint system for superior surface protection. | |
| Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models. | |
| Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump. The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel. | |
| NEMA type B Motor | |
| Class F insulation | |
| SINGLE PHASE UNITS require capacitors. See panels BCP5 R13 for Standard Construction and Explosion Proof. | |
| THREE PHASE UNITS can use standard panel selections with option added for minicas device (i.e. options O, simplex and P, duplex). | |
Specifications | |
Brand |
Goulds Pumps |
Catalog Number |
1GA81J3BDX |
Type |
Explosion Proof Submersible Grinder Pumps |
Series |
1GA Series |
HP |
6 |
Phase |
3 |
Volts |
230 |
RPM |
3450 |
Discharge Size |
1-1/2" |
Impeller Code |
B |
Max Amps |
15 |
Start Amps |
144 |
Locked Rotor Amps |
75 |
Power Cable Size |
12/7 |
Approx. Pump Wt. (Lbs.) |
172 |
Maximum Capacity |
92 GPM |
Maximum Total Head |
117' TDH |
Notes |
See support documents |
Support Documents (pdf) | ||||
