Goulds Pumps

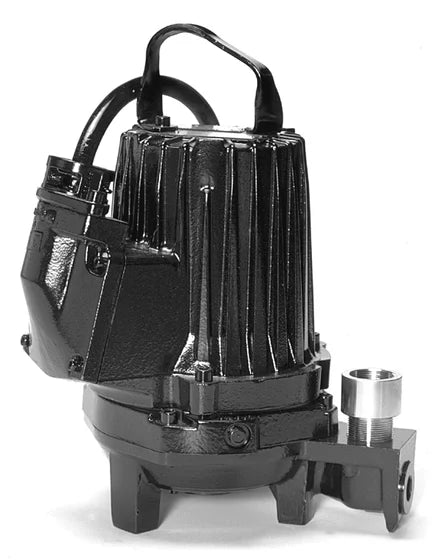

1GA71G1HDX Goulds Explosion Proof Submersible Grinder Pump (3 HP, 1 Phase, 230 Volts)

1GA71G1HDX Goulds Explosion Proof Submersible Grinder Pump (3 HP, 1 Phase, 230 Volts)

[COUNT] shoppers are looking at this right now

1GA71G1HDX

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
Goulds Pumps 1GA71G1HDX, 1GA Series , 3 HP, 1 Phase, 230 Volts,

Applications
High head and pressure sewage systems for: Municipal, Commercial, Industrial.
Features
Design: Capable of grinding municipal, commercial and industrial sewage.
Cutter System: Designed to reduce sewage to a fine slurry.
Impeller: Cast iron, semi-open, non-overloading multivane design with pump-out vanes for mechanical seal protection.
Casing: Cast iron, volute type for high efficiency. Adaptable for slide rail system.
Paint: Two coat paint system for superior surface protection.
Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models.
Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump. The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel.
NEMA type B Motor
Class F insulation
SINGLE PHASE UNITS require capacitors. See panels BCP5 R13 for Standard Construction and Explosion Proof.
THREE PHASE UNITS can use standard panel selections with option added for minicas device (i.e. options O, simplex and P, duplex).

Specifications

Brand
Goulds Pumps
Catalog Number
1GA71G1HDX
Type
Explosion Proof Submersible Grinder Pumps
Series
1GA Series
HP
3
Phase
1
Volts
230
RPM
3450
Discharge Size
1-1/2"
Impeller Code
H
Max Amps
13
Start Amps
74
Locked Rotor Amps
52
Power Cable Size
14/7
Approx. Pump Wt. (Lbs.)
117
Maximum Capacity
92 GPM
Maximum Total Head
117' TDH
Notes
See support documents
