U.S. Motors

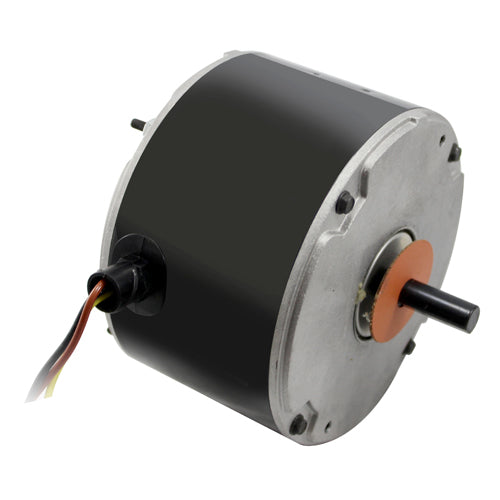

1903 US Electric Motor Condenser Fan Motor (1/5 HP, 825 RPM, TEFC, 200-230V)
1903 US Electric Motor Condenser Fan Motor (1/5 HP, 825 RPM, TEFC, 200-230V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:1903
Regular price
$232.51 USD
Regular price
$0.00 USD
Sale price
$232.51 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
1903 US Electric Motor Condenser Fan Motor (1/5 HP, 825 RPM, TEFC, 200-230V)
| Model_Number: | K055CLZ1515011B |
| Cat # | 1903 |
| PRODUCT NAME: | .2 HP - ENCLOSED - 825 |
| PHASETYPE: | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE: | ENCLOSED |
| HORSEPOWER: | .2 |
| KILOWATTS: | 0.2 |
| POLES: | 8 |
| NUMBER SPEEDS: | 1 |
| RPM: | 825 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 200-230 V |
| VOLTS : | 200 |
| VOLTS 2: | 230 |
| FRME : | 48 |
| SHAFT CODE: | Y |
| STATOR DIAMETER: | 5.5 |
| STACK: | 2 |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| ROTATION: | CCW LEAD END |
| RUNCAPMFD: | 7.5 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 15 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 22.71 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 6.207 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| LOCKED ROTOR AMPS: | 1.9 |
| FULL LOAD AMPS PRIMARY: | 0.93 |
