U.S. Motors

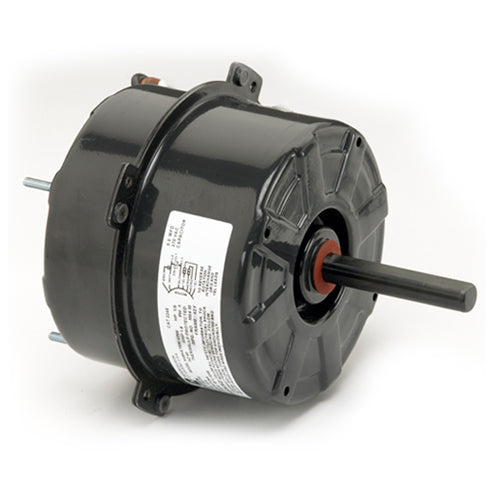

1901 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/6 HP, 208-230 Volts, 1075 RPM)
1901 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/6 HP, 208-230 Volts, 1075 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:1901
Regular price
$242.39 USD
Regular price
$0.00 USD
Sale price
$242.39 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 1901, HP: 1/6, RPM: 1075, Volts: 208-230, Amps: 1, Total C: 5.8, OEM Direct Replacement: Lennox, Enclosure: TEAO, Type: 5.0" Single Speed, Stud Mount, Without Capacitor (Fig B) 4.464 BC,
| Applications | |
| Designed to meet manufacturer's requirements for fans & blowers. | |
| Features | |
| Four 8-32 x 3/4 Stud Extensions At Each End | 12 Leads |
| Ball Bearings Have All Angle Thrust System | Automatic Reset Thermal Overload Protector |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
1901 |
HP |
1/6 |
RPM |
1075 |
Volts |
208-230 |
Bearings |
SAB |
Amps |
1 |
Cap. MFD |
5 |
Shaft N |
2 |
Apx. Wt. (lb) |
10 |
Shell XI |
3.8 |
Total C |
5.8 |
OEM Direct Replacement |
Lennox |
Enclosure |
TEAO |
Type |
5.0" Single Speed, Stud Mount, Without Capacitor (Fig B) 4.464 BC |
Support Documents (pdf) | ||||
| Product Literature | ||||
