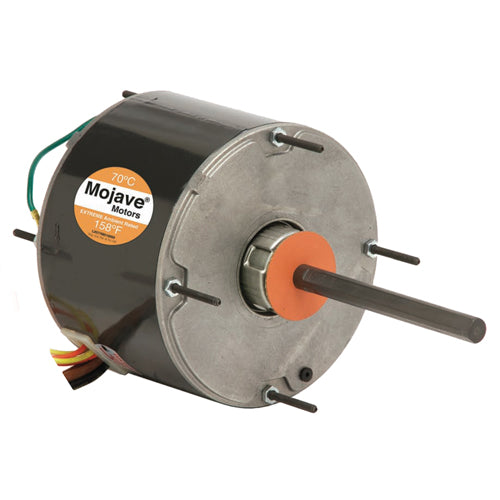

• 1873H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/6 HP, 208-230 Volts, 825 RPM) - KG Power Systems
1 1

U.S. Motors

1873H Nidec U.S. Motors Permanent Split Capacitor, MOJAVE Series, High Ambient, Condenser Fan Motor (1/6 HP, 208-230 Volts, 825 RPM, 48Y Frame, 5.6" Diameter, TEAO Enclosure, Single Phase, Reversible, Auto Overload, 1 Speed)

1873H Nidec U.S. Motors Permanent Split Capacitor, MOJAVE Series, High Ambient, Condenser Fan Motor (1/6 HP, 208-230 Volts, 825 RPM, 48Y Frame, 5.6" Diameter, TEAO Enclosure, Single Phase, Reversible, Auto Overload, 1 Speed)

[COUNT] shoppers are looking at this right now

1873H

$145.29 USD
$0.00 USD $145.29 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 1873H, HP: 1/6, RPM: 825, Volts: 208-230, Diameter: 5.6", Enclosure: TEAO, extreme temperature locations

Applications
Residential and commercial condensing unit fan motors in extreme temperature locations.
Features
158F (70C) Ambient Design Hubless Lead End
Ball Bearings Have All Angle Thrust System Drain Holes Both Ends
Class F Insulation Reversible Rotation
Designed for use with 370V Capacitors Automatic Reset Thermal Overload Protector
Extended Studs Continuous Duty
48" Leads

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
1873H
HP
1/6
RPM
825
Volts
208-230
Bearings
Ball
Amps
1.2
Cap. MFD
5
Shaft N
6
Apx. Wt. (lb)
17
Shell XI
4.3
Total C
10.6
Diameter
5.6"
Enclosure
TEAO
Mount
Stud - All Angle
Notes
Without Capacitor, Extreme High Ambient Design
Type
MOJAVE Series Condenser Fan Motor









Support Documents (pdf)
Product Literature
