U.S. Motors

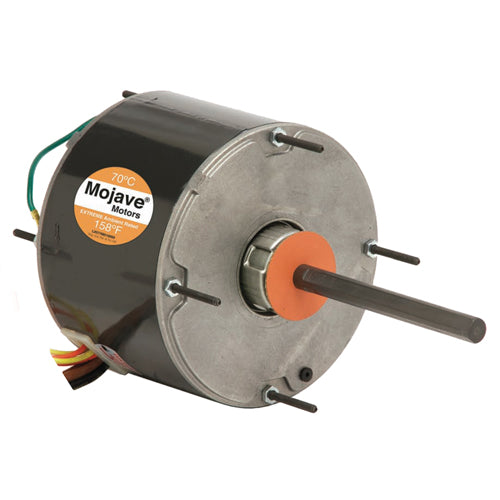

1861H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/3 HP, 208-230 Volts, 1075 RPM)
1861H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/3 HP, 208-230 Volts, 1075 RPM)
SKU:1861H
Regular price
$151.10 USD
Regular price
Sale price
$151.10 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson 1861H, HP: 1/3, RPM: 1075, Volts: 208-230, Diameter: 5.6", Enclosure: TEAO, extreme temperature locations
| Applications | |
| Residential and commercial condensing unit fan motors in extreme temperature locations. | |
| Features | |
| 158F (70C) Ambient Design | Hubless Lead End |
| Ball Bearings Have All Angle Thrust System | Drain Holes Both Ends |
| Class F Insulation | Reversible Rotation |
| Designed for use with 370V Capacitors | Automatic Reset Thermal Overload Protector |
| Extended Studs | Continuous Duty |
| 48" Leads | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
1861H |
HP |
1/3 |
RPM |
1075 |
Volts |
208-230 |
Bearings |
Ball |
Amps |
2.1 |
Cap. MFD |
7.5 |
Shaft N |
6 |
Apx. Wt. (lb) |
14 |
Shell XI |
4.6 |
Total C |
11.1 |
Diameter |
5.6" |
Enclosure |
TEAO |
Mount |
Stud - All Angle |
Notes |
Without Capacitor, Extreme High Ambient Design |
Type |
MOJAVE Series Condenser Fan Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
