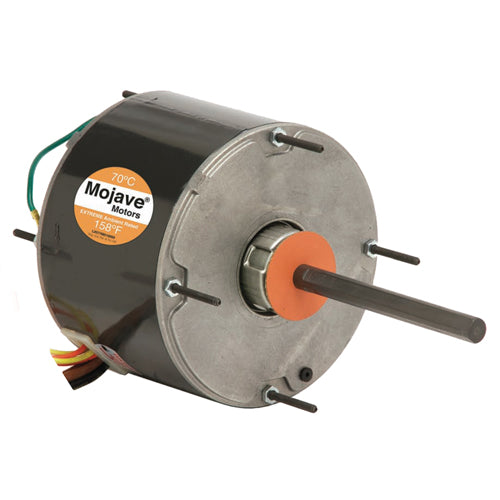

1860H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/4 HP, 208-230 Volts, 1075 RPM)

1860H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/4 HP, 208-230 Volts, 1075 RPM)

[COUNT] shoppers are looking at this right now

1860H

$133.80 USD
$0.00 USD $133.80 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 1860H, HP: 1/4, RPM: 1075, Volts: 208-230, Diameter: 5.6", Enclosure: TEAO, extreme temperature locations
Applications
Residential and commercial condensing unit fan motors in extreme temperature locations.
Features
158F (70C) Ambient Design Hubless Lead End
Ball Bearings Have All Angle Thrust System Drain Holes Both Ends
Class F Insulation Reversible Rotation
Designed for use with 370V Capacitors Automatic Reset Thermal Overload Protector
Extended Studs Continuous Duty
48" Leads

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
1860H
HP
1/4
RPM
1075
Volts
208-230
Bearings
Ball
Amps
1.7
Cap. MFD
5
Shaft N
6
Apx. Wt. (lb)
12
Shell XI
4.1
Total C
10.6
Diameter
5.6"
Enclosure
TEAO
Mount
Stud - All Angle
Notes
Without Capacitor, Extreme High Ambient Design
Type
MOJAVE Series Condenser Fan Motor

Support Documents (pdf)

Product Literature
