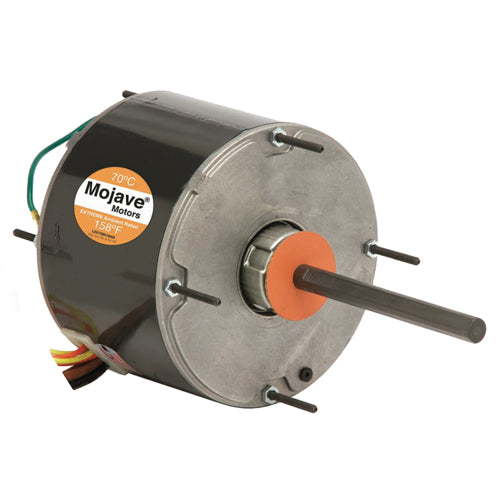

1859H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/6 HP, 208-230 Volts, 1075 RPM)

Name: 1859H U.S. Motors Perm. Split Capacitor MOJAVE Series Condenser Fan Motor (1/6 HP, 208-230 Volts, 1075 RPM)
Brand: U.S. Motors
SKU: 1859H
Price: 134.63 USD
Availability: InStock

SKU:1859H

$134.63 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

US Motors Emerson 1859H, HP: 1/6, RPM: 1075, Volts: 208-230, Diameter: 5.6", Enclosure: TEAO, extreme temperature locations

Applications
Residential and commercial condensing unit fan motors in extreme temperature locations.

Features
158F (70C) Ambient Design	Hubless Lead End
Ball Bearings Have All Angle Thrust System	Drain Holes Both Ends
Class F Insulation	Reversible Rotation
Designed for use with 370V Capacitors	Automatic Reset Thermal Overload Protector
Extended Studs	Continuous Duty
48" Leads

Tech Specs
Brand	U.S. Motors/Emerson
Model Number	1859H
HP	1/6
RPM	1075
Volts	208-230
Bearings	Ball
Amps	1
Cap. MFD	5
Shaft N	5
Apx. Wt. (lb)	18
Shell XI	4
Total C	9.4
Diameter	5.6"
Enclosure	TEAO
Mount	Stud - All Angle
Notes	Without Capacitor, Extreme High Ambient Design
Type	MOJAVE Series Condenser Fan Motor

Support Documents (pdf)
Product Literature

Questions about this product? Contact our team!
Product images may be generic.
