U.S. Motors

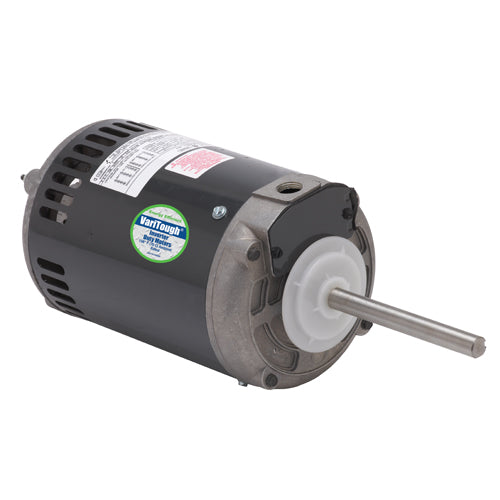

1830V Nidec U.S. Motors VariTough Inverter Duty Commercial Condenser Fan Motor (1 HP, 208-230/460 Volts, 3 Phase, 850 RPM, 56YZ Frame, Belly Band Motor Mount)
1830V Nidec U.S. Motors VariTough Inverter Duty Commercial Condenser Fan Motor (1 HP, 208-230/460 Volts, 3 Phase, 850 RPM, 56YZ Frame, Belly Band Motor Mount)
[COUNT] shoppers are looking at this right now
No reviews
SKU:1830V
Regular price
$611.59 USD
Regular price
$0.00 USD
Sale price
$611.59 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 1830V, HP: 1, RPM: 850, Volts: 208-230/460, Frame: 56YZ, Shaft Dia. (U): 0.625, Motor Mount: Belly Band, Phase: Three, For use on condenser cooling fans
| Applications | |
| For use on condenser cooling fans in commercial air conditioning applications, where 3 phase power and variable frequency drives (VFD's) are required.. | |
| Features | |
| Inverter Duty | Class F Insulation |
| Designed to NEMA MG1-Part 31 | Thermostat Temperature Protection |
| Open Drip-Proof, Shaft-up Design | Use Kit #21 for Shaft Grounding Option |
| Continuous Duty, Air Over | 70C Ambient |
| 70C Ambient | |
|
Tech Specs |
|
|
Brand
|
U.S. Motors/Emerson
|
|
Model Number
|
1830V
|
|
HP
|
1
|
|
RPM
|
850
|
|
Volts
|
208-230/460
|
|
Frame
|
56YZ
|
|
Amps
|
5.3-5.3/2.6
|
|
Shaft Length (N)
|
5.3-5.3/2.6
|
|
Shaft Dia. (U)
|
0.625
|
|
Apx. Wt. (lb)
|
33
|
|
Total Length
|
33
|
|
Motor Mount
|
Belly Band
|
|
Phase
|
Three
|
|
Type
|
VariTough Inverter Duty Condenser Fan Motor
|
|
Support Documents (pdf) |
||||
| Product Literature | ||||
