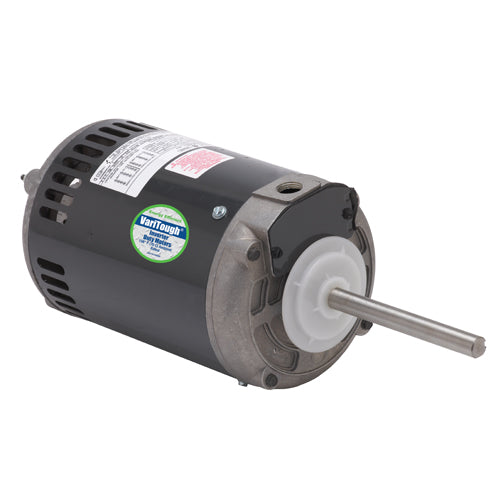

1828V U.S. Motors VariTough Inverter Duty Commercial Condenser Fan Motor (1 HP, 208-230/460 Volts, 850 RPM)

US Motors Emerson 1828V, HP: 1, RPM: 850, Volts: 208-230/460, Frame: 56YZ, Shaft Dia. (U): 0.625, Motor Mount: Belly Band, Phase: Three, For use on condenser cooling fans

Applications
For use on condenser cooling fans in commercial air conditioning applications, where 3 phase power and variable frequency drives (VFD's) are required..
Features
Inverter Duty	Class F Insulation
Designed to NEMA MG1-Part 31	Thermostat Temperature Protection
Open Drip-Proof, Shaft-up Design	Use Kit #21 for Shaft Grounding Option
Continuous Duty, Air Over	70C Ambient
70C Ambient

Tech Specs
Brand	U.S. Motors/Emerson
Model Number	1828V
HP	1
RPM	850
Volts	208-230/460
Frame	56YZ
Amps	5.3-5.3/2.6
Shaft Length (N)	5.3-5.3/2.6
Shaft Dia. (U)	0.625
Apx. Wt. (lb)	42
Total Length	42
Motor Mount	Belly Band
Phase	Three
Type	VariTough Inverter Duty Condenser Fan Motor
