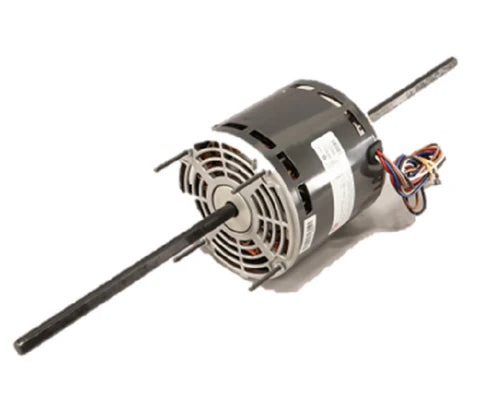

1824 Nidec U.S. Motors Double Shaft Fan and Blower Motor (1/2 HP, 230 Volts, 48Y Frame, 1075 RPM, 5.6 Diameter, OAO Enclosure, Single Phase, Auto Overload, 3 Speed)
1824 Nidec U.S. Motors Double Shaft Fan and Blower Motor (1/2 HP, 230 Volts, 48Y Frame, 1075 RPM, 5.6 Diameter, OAO Enclosure, Single Phase, Auto Overload, 3 Speed)
[COUNT] shoppers are looking at this right now
No reviews
SKU:1824
Regular price
$320.01 USD
Regular price
$0.00 USD
Sale price
$320.01 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 1824 HP: 1/2, RPM/Spds.: 1075/3, Volts: 230, Cap MFD: 5, Amps: 4.5, Bearings: Slv, Shaft Length (N): 8, Total C: 22, Mount: Hub or Stud Mount (Except Where Noted), Permanent Split Capacitor
| Applications | |
| Design to meet manufacturer's requirements for blowers utilizing a double-shaft motor. | |
| Features | |
| Automatic Reset Thermal Overload Protector | Mounting Holes in Shell for Mounting Capacitor |
| CCW Rotation Lead End | 20" Leads |
| Sleeve Bearings Have All Angle Thrust System | Class B Insulation |
| Continuous Duty, Air Over | Open Dripproof, Air Over, Except Where Noted |
| Designed for Use with 370V Capacitors | |
|
Tech Specs |
|
|
Brand
|
U.S. Motors/Emerson
|
|
Model Number
|
1824
|
|
HP
|
1/2
|
|
RPM/Spds.
|
1075/3
|
|
Volts
|
230
|
|
Cap MFD
|
5
|
|
Amps
|
4.5
|
|
Bearings
|
Slv
|
|
Shaft Length (N)
|
8
|
|
Apx. Wt. (lb)
|
19
|
|
Shell XI
|
5.4
|
|
Total C
|
22
|
|
Shaft XN
|
8
|
|
Speed
|
Three
|
|
Mount
|
Hub or Stud Mount (Except Where Noted)
|
|
Enclosure
|
Open Dripproof, Air Over
|
|
Notes
|
With Capacitor and Mounting Kit
|
|
Diameter
|
5.6"
|
|
Type
|
Double Shaft Fan & Blower Motor
|
|
|
|
|
