U.S. Motors

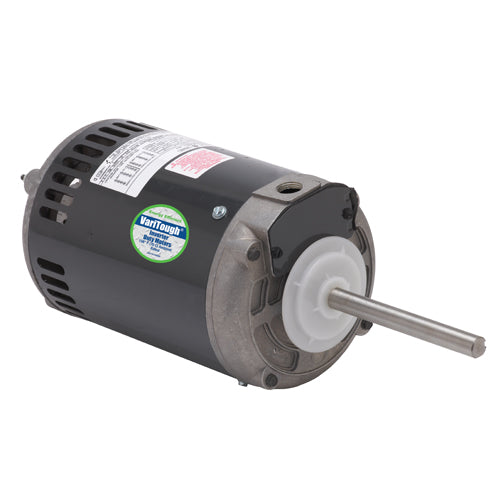

1822V U.S. Motors VariTough Inverter Duty Commercial Condenser Fan Motor (2 HP, 208-230/460 Volts, 1140 RPM)
1822V U.S. Motors VariTough Inverter Duty Commercial Condenser Fan Motor (2 HP, 208-230/460 Volts, 1140 RPM)
[COUNT] shoppers are looking at this right now
SKU:1822V
Regular price
$834.04 USD
Regular price
$0.00 USD
Sale price
$834.04 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson 1822V, HP: 2, RPM: 1140, Volts: 208-230/460, Frame: 56YZ, Shaft Dia. (U): 0.625, Motor Mount: Rigid Base, Phase: Three, For use on condenser cooling fans
| Applications | |
| For use on condenser cooling fans in commercial air conditioning applications, where 3 phase power and variable frequency drives (VFD's) are required.. | |
| Features | |
| Inverter Duty | Class F Insulation |
| Designed to NEMA MG1-Part 31 | Thermostat Temperature Protection |
| Open Drip-Proof, Shaft-up Design | Use Kit #21 for Shaft Grounding Option |
| Continuous Duty, Air Over | 70C Ambient |
| 70C Ambient | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
1822V |
HP |
2 |
RPM |
1140 |
Volts |
208-230/460 |
Frame |
56YZ |
Amps |
7.8-7.8/3.9 |
Shaft Length (N) |
7.8-7.8/3.9 |
Shaft Dia. (U) |
0.625 |
Apx. Wt. (lb) |
44 |
Total Length |
44 |
Motor Mount |
Rigid Base |
Phase |
Three |
Type |
VariTough Inverter Duty Condenser Fan Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
