U.S. Motors

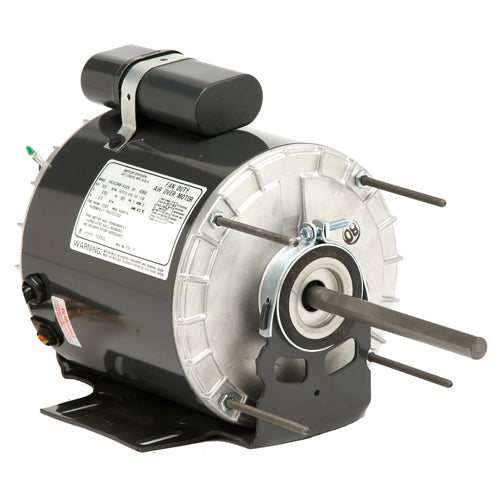

1810 U.S. Motors Unit Heater Fan Motor (1/2 HP, 230 Volts, 1075/2 RPM/Spds.)

1810 U.S. Motors Unit Heater Fan Motor (1/2 HP, 230 Volts, 1075/2 RPM/Spds.)

[COUNT] shoppers are looking at this right now

1810

$554.51 USD
$0.00 USD $554.51 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 1810 HP: 1/2, RPM/Spds.: 1075/2, Volts: 230, Cap MFD: 10, Amps: 2.5, Shell XI: 6.3, Diameter: 6.3, Mount: Resilient Base , Permanent Split Capacitor & Shaded Pole

Applications
Designed to meet manufacturer's requirements for use on unit heaters.
Features
Continuous Duty, Air Over Green Ground Lead
Reversible Motors Are Easily Reversed 48 Frame Has 8-32 NF-2A Thread
2-1/2" Diameter Hub Rings 56 Frame Has 10-32 NF-2A Thread
Automatic Reset Thermal Overload Protector Leads Are SJO Cord
Extended Mounting Studs

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
1810
HP
1/2
RPM/Spds.
1075/2
Volts
230
Cap MFD
10
Amps
2.5
Shaft Length (N)
4.9
Shell XI
6.3
Apx. Wt. (lb)
26
Total C
12.8
Diameter
6.3
Mount
Resilient Base
Enclosure
Totally Enclosed, Air Over
Type
Unit Heater Fan Motor
Notes
See Product Literature

Support Documents (pdf)

Product Literature
