Berkeley Pumps

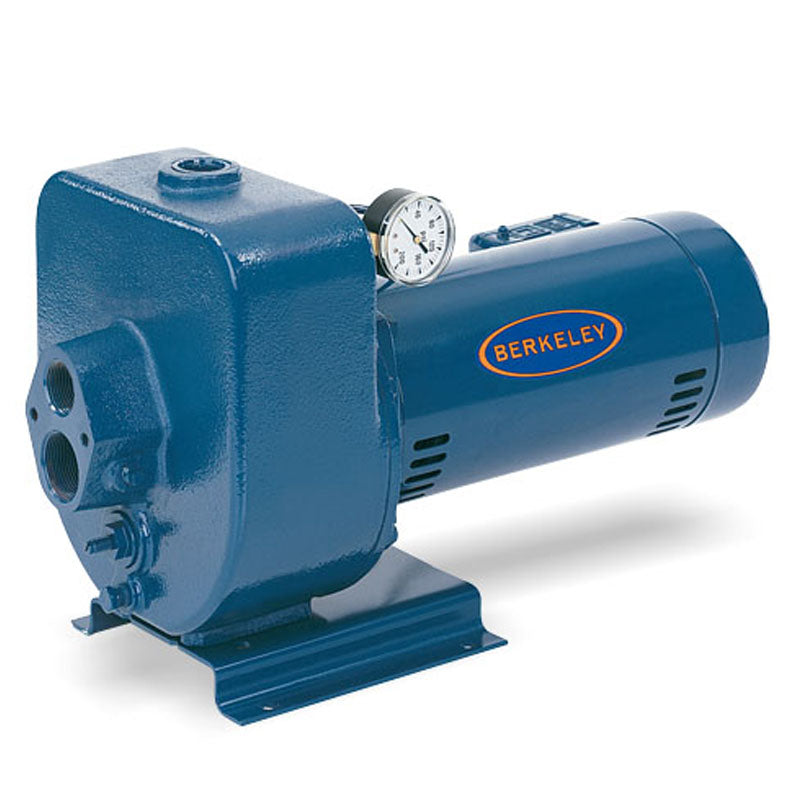

15LT2 Berkeley Horizontal Multi-Stage Jet Pump (1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, LT2 Series)

15LT2 Berkeley Horizontal Multi-Stage Jet Pump (1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, LT2 Series)

[COUNT] shoppers are looking at this right now

15LT2

$1,954.21 USD
$3,857.00 USD $1,954.21 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart
Berkeley 15LT2, Cast iron, horizontal multi-stage Pump Type, LT2 Series, 1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage,
Applications
LT2 Series Multi-Stage Jet Pumps are the highest performing pumps available in its category. The LT2 Series Convertible Jets utilize the built-in regulator, offering easier priming and better range of performance from a complete line of Shallow Well, 4" Double Pipe, 2" and 3" Single Pipe Jet Packages. Pump may also be operated as a self-priming centrifugal (to 25 ft.) to provide a wide range of high pressure applications. APPLICATIONS Water systems and sprinkling for homes, farms and cottages.
Features
Automatic Pressure Regulator: Fasteracting and quieter, design eliminates hunting for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. See ordering information (deep well only).
Quality Construction: Close-grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing.
Precision-Machined Diffusers: Assure faster priming.
Mechanical Shaft Seal: Precision-lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection.
Polycarbonate Impellers: Precisionmolded for perfect balance, and ultrasmooth for highest performance and efficiency.
Motor Windings: Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life.
Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure.
Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency...dynamically balanced.
Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation.
Pump and Motor Shaft: Stainless steel for maximum corrosion resistance;. one-piece threaded shaft for positive impeller drive and alignment.

Specifications

Brand
Berkeley
Catalog Number
15LT2
Type
Cast iron, horizontal multi-stage Pump
Series
LT2
HP
1-1/2
Suction
1-1/4"
Drive
1"
Discharge
1"
Voltage
115/230
Body
One-piece rugged cast iron
Pump and Motor Shaft
416 stainless steel
Impeller
Polycarbonate
Diffuser
Corrosion-resistant cast iron
Pressure Switch Pre-Set
3050 PSI
Suction Ports
Drive-over-Suction
Regulator, tubing, pipe plug and compression fitting
PKG 107

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
