Goulds Pumps

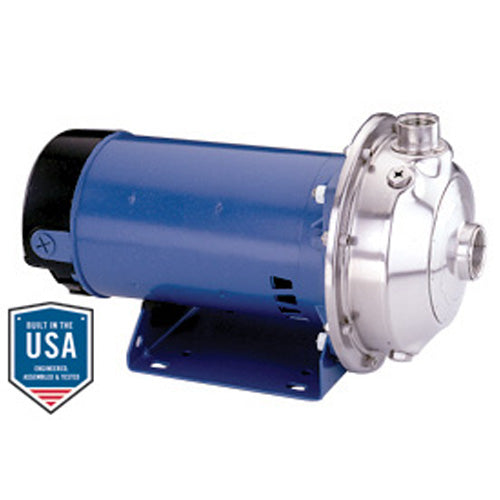

150MS1F4G4 Goulds Stainless Steel Centrifugal Pump (1.5 HP, 1/60/115-230 Driver, TE Enclosure, 3.63" Impeller, Stainless Steel)
150MS1F4G4 Goulds Stainless Steel Centrifugal Pump (1.5 HP, 1/60/115-230 Driver, TE Enclosure, 3.63" Impeller, Stainless Steel)
[COUNT] shoppers are looking at this right now
No reviews
SKU:150MS1F4G4
Regular price
$1,755.60 USD
Regular price
$2,926.00 USD
Sale price
$1,755.60 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
Goulds Pumps 150MS1F4G4, End Suction Stainless Steel Centrifugal Pumps Type, MCS Series, 1.5 HP, 1/60/115-230 Driver, TE Enclosure, 3.63" Impeller Size, Stainless Steel Material,
| Applications | |
| Goulds MCS Series Stainless Steel Centrifugal pumps are specifically designed for a broad range of general applications traditionally requiring various materials such as all iron, bronze fitted or all bronze construction. Applications include: water circulation, booster service, liquid transfer, spray system, chillers, washers / cleaning systems, injection molding cooling, reverse osmosis, air scrubbers, heat exchangers, filtration systems, jockey poumps, OEM applications, general warer services. | |
| Features | |
| Superior Materials of Construction: AISI 304 and 316L stainless steel liquid handling components for corrosion resistance, quality appearance, and improved strength and ductility. | |
| High Efficiency Impeller: Enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment. | |
| Casing: Stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. | |
| Mechanical Seal: Standard John Crane seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts. Optional high temperature and chemical duty seals available. | |
| Motors: NEMA standard open drip-proof, totally enclosed fan cooled enclosures. Ruggedball bearing design for continuous duty under all operating conditions. | |
Specifications | |
Brand |
Goulds Pumps |
Catalog Number |
150MS1F4G4 |
Type |
End Suction Stainless Steel Centrifugal Pumps |
Series |
MCS |
HP |
1.5 |
Driver |
1/60/115-230 |
Enclosure |
TE |
Impeller Size |
3.63" |
Material |
Stainless Steel |
Pump Size |
1-1/2 x 2 - 6 |
Suction |
2" |
Discharge |
1.50" |
Notes |
See support documents |
Support Documents (pdf) | ||||
