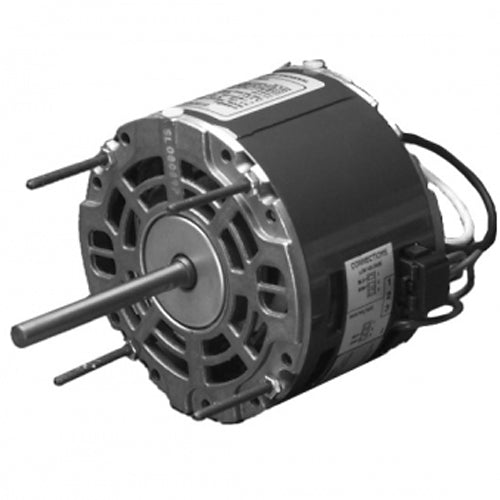

1471P U.S. Motors 21/29 Frame Replacement Motor (1/10 HP, 115/208-230 Volts, 1050 RPM)

1471P U.S. Motors 21/29 Frame Replacement Motor (1/10 HP, 115/208-230 Volts, 1050 RPM)

[COUNT] shoppers are looking at this right now

1471P

$251.96 USD
$0.00 USD $251.96 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 1471P HP: 1/10, RPM: 1050, Volts: 115/208-230, Frame: 21/29, Mount: Hub Mount Bracket (2-1/4"), OEM Replacement (GE Number): HG3253, HG3254, HG3275, HG3263, HG3264,
Applications
Designed to replace most original 21 and 29 frame motors.
Features
Single Speed Class B Insulation

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
1471P
HP
1/10
RPM
1050
Volts
115/208-230
Frame
21/29
Amps
3.8/1.9
Shaft Length (N)
3.3
Shaft Dia. (U)
0.375
Apx. Wt. (lb)
7
Shell XI
3.8
Total C
7.6
Stud YM
1.5
Max Stud Ext YW
6.1
D
-
Shell XD
-
Enclosure
Open Dripproof, Air Over
Mount
Hub Mount Bracket (2-1/4")
OEM Replacement (GE Number)
HG3253, HG3254, HG3275, HG3263, HG3264
