• 1469P U.S. Motors 21/29 Frame Replacement Motor (1/15 HP, 115/208-230 Volts, 1550 RPM) - KG Power Systems
1 1

U.S. Motors

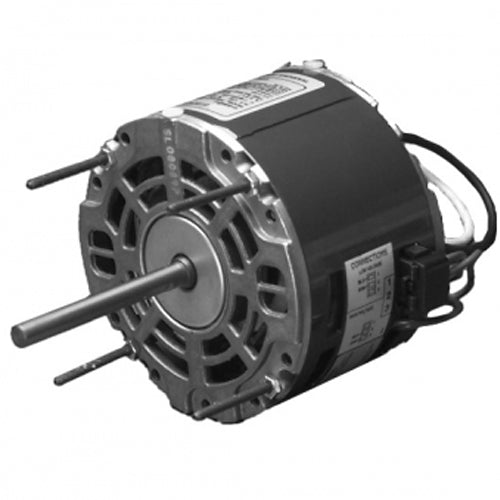

1469P U.S. Motors 21/29 Frame Replacement Motor (1/15 HP, 115/208-230 Volts, 1550 RPM)

1469P U.S. Motors 21/29 Frame Replacement Motor (1/15 HP, 115/208-230 Volts, 1550 RPM)

[COUNT] shoppers are looking at this right now

1469P

$246.48 USD
$0.00 USD $246.48 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson 1469P HP: 1/15, RPM: 1550, Volts: 115/208-230, Frame: 21/29, Mount: Hub Mount Bracket (2-1/4"), OEM Replacement (GE Number): FG3101, FG3102, FG3103, FG3104, FG3121, FG3122, FG3123, FG3124,
Applications
Designed to replace most original 21 and 29 frame motors.
Features
Single Speed Class B Insulation

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
1469P
HP
1/15
RPM
1550
Volts
115/208-230
Frame
21/29
Amps
2.8/1.4
Shaft Length (N)
3.5
Shaft Dia. (U)
0.375
Apx. Wt. (lb)
7
Shell XI
3.3
Total C
7.4
Stud YM
1.5
Max Stud Ext YW
5.8
D
-
Shell XD
-
Enclosure
Open Dripproof, Air Over
Mount
Hub Mount Bracket (2-1/4")
OEM Replacement (GE Number)
FG3101, FG3102, FG3103, FG3104, FG3121, FG3122, FG3123, FG3124
