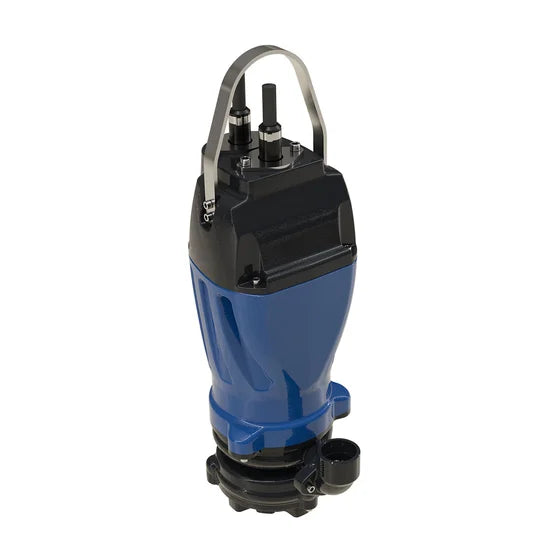

145349 Crane Barnes ZSGV Series, Razor Grinder Pump (ZSGV2072L Model, 2 HP, 208-240 Volt, 1 Phase, 3450 RPM, 1-1/4" NPT Discharge, 5.56" Impeller, 54 GPM Max, 125' Max Head, 30' Cord, Manual)

145349 Crane Barnes ZSGV Series, Razor Grinder Pump (ZSGV2072L Model, 2 HP, 208-240 Volt, 1 Phase, 3450 RPM, 1-1/4" NPT Discharge, 5.56" Impeller, 54 GPM Max, 125' Max Head, 30' Cord, Manual)

Razor grinder pump is the ideal 2 HP pump for light commercial and residential solids handling applications, thoughtfully designed with innovative axial cutting technology to efficiently reduce solids like flushable wipes, diapers, and other non-biodegradable items commonly found in the modern waste stream.

Note:  This pump requires either a control panel or capacitor/relay pack (147109) in order to operate.

If other than Barnes panel is used with this single phase pump, the capacitor/relay pack 147109 must be used for warranty compliance.

Features

• 2 HP, 208-240V, 1/60 Hz, 17.5-15.0 Amps
• NEMA L motor includes overload protection
• Patented axial cutter provides superior non-clogging versus radial cutter design
• Designed for ease of installation and service
• Optimal cutting torque performance in low voltage situations 208-240V
• Configurations available to retrofit into existing Barnes applications and competitor's grinder installs
• Highy customizable solutions
• Utilizes single tool for service and maintenance
• Built to handle varying pressures without wear
• Suitable for preconfigured packaged systems and turn key solutions
• Plug-n-Play cord provides easy service without requiring removal of epoxy in conduit

Applications

• Pressure sewer
• Municipal wastewater
