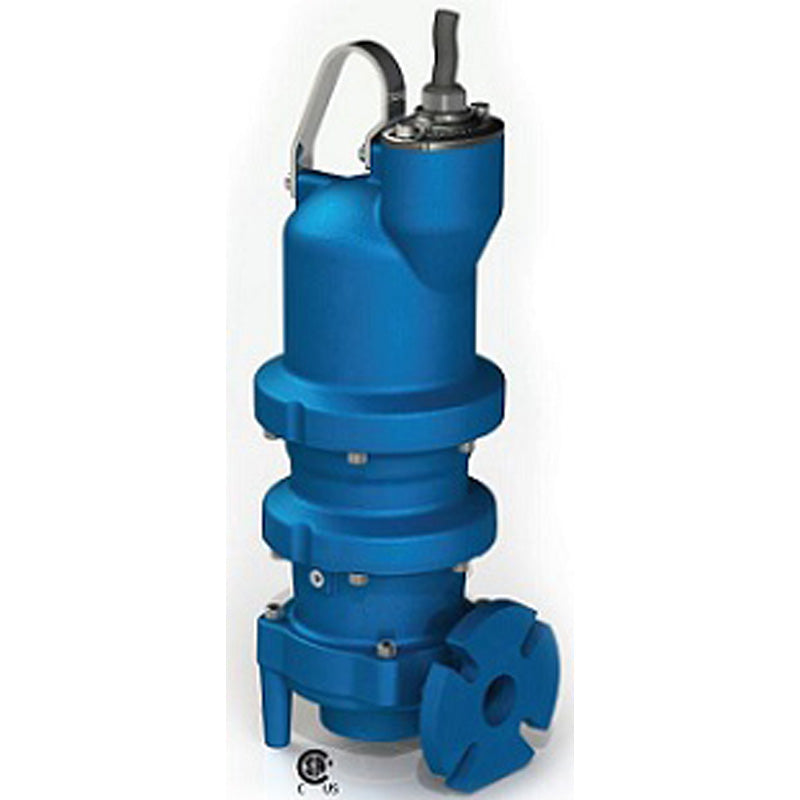

141372 Barnes Explosion Proof Submersible Grinder Pump (10 HP, 208-230/460 Volt, 3 Phase, 60 Hz, 3450 RPM, 155 Max GPM, XGVHH Series)

Barnes 141372, BLADE XGVHH Submersible Grinder Pump - Horizontal Type, XGVHH Series, 10 HP, 208-230/460 Volt, 3 Phase, 60 Hz, 3450 RPM, 155 Max GPM,

Applications
BLADE XGV Grinder pumps are the Barnes solution to high head high flow waste water grinding applications in municipal, commercial and light industrial environments. They are available in 3HP to 15HP explosion proof models with 2, 2.5 and 3 discharge sizes. BLADE XGV grinder pumps are designed for long lasting dependability and ease of maintenance. Equipped with the Barnes Slicerator radial cutting technology, plug-n-play Quick Connect cord and oil filled motor, BLADE XGV grinder pumps are the perfect choice for demanding high head, high flow applications involving troublesome solids like plastics, ropes, diapers and cloth materials.
Features
*Cord sold separately.
Single phase pumps have start components provided with pump
Barnes Slicerator radial cutting technology
Oil filled motor
THE GRINDER PUMP IS FOR USE IN HAZARDOUS LOCATIONS AND IS DESIGNED TO REDUCE DOMESTIC, COMMERCIAL, INSTITUTIONAL AND LIGHT INDUSTRIAL SEWAGE TO A FINELY GROUND SLURRY.
OPTIONAL EQUIPMENT - Seal Material, Impeller Trims, Cord Length, Leg Kit
CORD ENTRY - Custom Molded, Quick Connected for Sealing and Strain Relief
PAINT- Air Dry Enamel
IMPELLER: Design - 12 Vane,Vortex, With Pump Out Vanes On Back Side. Dynamically Balanced, ISO G6.3
MOTOR HOUSING - Cast Iron ASTM A-48, Class 30
VOLUTE - Cast Iron ASTM A-48, Class 30

Specifications
Brand	Barnes
Catalog Number	141372
Type	BLADE XGVHH Submersible Grinder Pump - Horizontal
Series	XGVHH
Model NO	XGVHH100N2
HP	10
Volt	208-230/460
Phase	3
Hz	60
RPM	3450
Frame	21
Max GPM	155
Max Head (ft)	242
Notes	See Support Documents
