Barnes Pumps

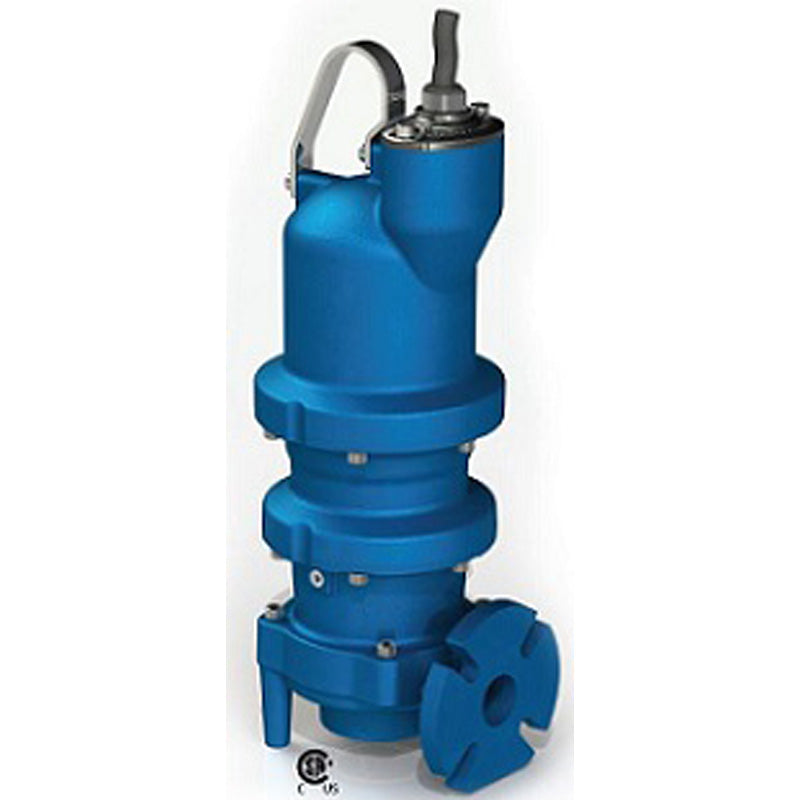

141355 Barnes Explosion Proof Submersible Grinder Pump (5 HP, 208-230/460 Volt, 3 Phase, 60 Hz, 3450 RPM, 110 Max GPM, XGVH Series)
141355 Barnes Explosion Proof Submersible Grinder Pump (5 HP, 208-230/460 Volt, 3 Phase, 60 Hz, 3450 RPM, 110 Max GPM, XGVH Series)
No reviews
SKU:141355
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Barnes 141355, BLADE XGVH Submersible Grinder Pump - Horizontal Type, XGVH Series, 5 HP, 208-230/460 Volt, 3 Phase, 60 Hz, 3450 RPM, 110 Max GPM,
| Applications | |
| BLADE XGV Grinder pumps are the Barnes solution to high head high flow waste water grinding applications in municipal, commercial and light industrial environments. They are available in 3HP to 15HP explosion proof models with 2, 2.5 and 3 discharge sizes. BLADE XGV grinder pumps are designed for long lasting dependability and ease of maintenance. Equipped with the Barnes Slicerator radial cutting technology, plug-n-play Quick Connect cord and oil filled motor, BLADE XGV grinder pumps are the perfect choice for demanding high head, high flow applications involving troublesome solids like plastics, ropes, diapers and cloth materials. | |
| Features | |
| *Cord sold separately. | |
| Single phase pumps have start components provided with pump | |
| Barnes Slicerator radial cutting technology | |
| Oil filled motor | |
| THE GRINDER PUMP IS FOR USE IN HAZARDOUS LOCATIONS AND IS DESIGNED TO REDUCE DOMESTIC, COMMERCIAL, INSTITUTIONAL AND LIGHT INDUSTRIAL SEWAGE TO A FINELY GROUND SLURRY. | |
| OPTIONAL EQUIPMENT - Seal Material, Impeller Trims, Cord Length, Leg Kit | |
| CORD ENTRY - Custom Molded, Quick Connected for Sealing and Strain Relief | |
| PAINT- Air Dry Enamel | |
| IMPELLER: Design - 12 Vane,Vortex, With Pump Out Vanes On Back Side. Dynamically Balanced, ISO G6.3 | |
| MOTOR HOUSING - Cast Iron ASTM A-48, Class 30 | |
| VOLUTE - Cast Iron ASTM A-48, Class 30 | |
Specifications | |
Brand |
Barnes |
Catalog Number |
141355 |
Type |
BLADE XGVH Submersible Grinder Pump - Horizontal |
Series |
XGVH |
Model NO |
XGVH50N2 |
HP |
5 |
Volt |
208-230/460 |
Phase |
3 |
Hz |
60 |
RPM |
3450 |
Frame |
18 |
Max GPM |
110 |
Max Head (ft) |
160 |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
