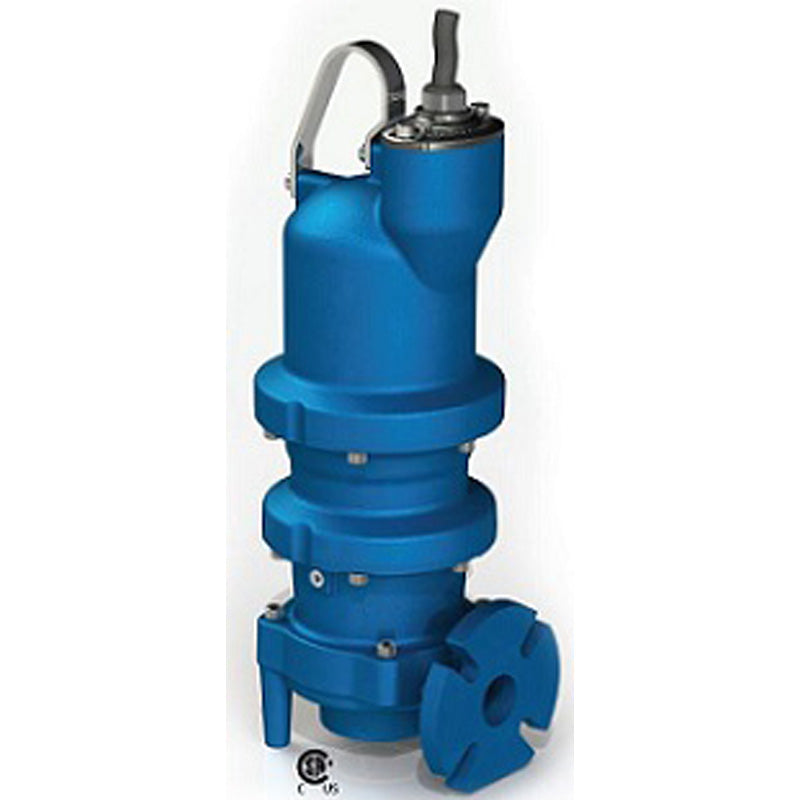

141339 Barnes Explosion Proof Submersible Grinder Pump (3 HP, 208/230 Volt, 1 Phase, 60 Hz, 3450 RPM, 110 Max GPM, XGV Series, 2" NPT Discharge)

141339 Barnes Explosion Proof Submersible Grinder Pump (3 HP, 208/230 Volt, 1 Phase, 60 Hz, 3450 RPM, 110 Max GPM, XGV Series, 2" NPT Discharge)

👁️ [COUNT] People are currently viewing this product.

141339

$6,412.67 USD
$9,619.00 USD $6,412.67 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Barnes 141339, BLADE XGV Submersible Grinder Pump - Vertical Type, XGV Series, 3 HP, 208/230 Volt, 1 Phase, 60 Hz, 3450 RPM, 110 Max GPM,

Applications
BLADE XGV Grinder pumps are the Barnes solution to high head high flow waste water grinding applications in municipal, commercial and light industrial environments. They are available in 3HP to 15HP explosion proof models with 2, 2.5 and 3 discharge sizes. BLADE XGV grinder pumps are designed for long lasting dependability and ease of maintenance. Equipped with the Barnes Slicerator radial cutting technology, plug-n-play Quick Connect cord and oil filled motor, BLADE XGV grinder pumps are the perfect choice for demanding high head, high flow applications involving troublesome solids like plastics, ropes, diapers and cloth materials.
Features
*Cord sold separately.
Single phase pumps have start components provided with pump
Barnes Slicerator radial cutting technology
Oil filled motor
THE GRINDER PUMP IS FOR USE IN HAZARDOUS LOCATIONS AND IS DESIGNED TO REDUCE DOMESTIC, COMMERCIAL, INSTITUTIONAL AND LIGHT INDUSTRIAL SEWAGE TO A FINELY GROUND SLURRY.
OPTIONAL EQUIPMENT - Seal Material, Impeller Trims, Cord Length, Leg Kit
CORD ENTRY - Custom Molded, Quick Connected for Sealing and Strain Relief
PAINT- Air Dry Enamel
IMPELLER: Design - 12 Vane,Vortex, With Pump Out Vanes On Back Side. Dynamically Balanced, ISO G6.3
MOTOR HOUSING - Cast Iron ASTM A-48, Class 30
VOLUTE - Cast Iron ASTM A-48, Class 30

Specifications

Brand
Barnes
Catalog Number
141339
Type
BLADE XGV Submersible Grinder Pump - Vertical
Series
XGV
Model NO
XGV3072
HP
3
Volt
208/230
Phase
1
Hz
60
RPM
3450
Frame
18
Max GPM
110
Max Head (ft)
160
Notes
See Support Documents

Support Documents (pdf)
