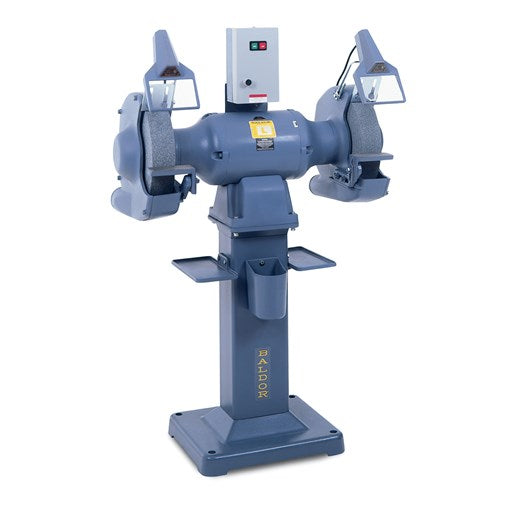

1406W ABB Baldor 14 Inch Bench Grinder (5 HP, 3 Phase, 230 Volt)

1406W ABB Baldor 14 Inch Bench Grinder (5 HP, 3 Phase, 230 Volt)

Features:

Built for heavy-duty grinding, powered by a 5 HP, Baldor 3 Phase Motor Slim design provides plenty of working room for grinding long, odd shaped pieces Cast iron exhaust-type guards accommodates a 5" diameter vent pipe Adjustable cast iron tool-rest, stamp steel spark breaks and eye shields Grinder supports optional wheels 14" x 3" wide, arbor size is 1-1/4" Magnetic starter with overload protection mounted on grinder Furnished with GA9 lighted eye shields Designed to comply with OSHA standards under normal usage Shipping Weight: 359 lbs UR Agency Approval Factory connected for 230, magnetic starter must be changed for other voltages

Applications:

Used for Heavy duty grinding applications. Specifically for foundry and fabrication shop use. Grinds castings, weldments and prepares parts for welding. The motor is rated 5 horsepower or 7.5 horsepower with 14" diameter x 3" wide wheels. Handles large pieces for grinding.

Specifications:

 Catalog Number | 1406W
 Horsepower | 5
 Voltage | 230
 Hertz | 50//60
 Phase | 3
 Amps | 13.6
 RPM | 1500//1800
 Baldor Type | 3735M
 Max Wheel Size | 14 inches
 UL Listed | No
 CSA Certified | Yes
