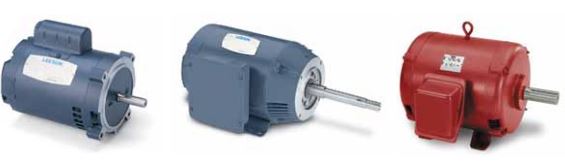

140642.00 Leeson Motors (C213K34DK2, 7.5 HP, 213 Frame, 3470RPM, 230V, DP)

140642.00 Leeson Motors (C213K34DK2, 7.5 HP, 213 Frame, 3470RPM, 230V, DP)

SKU:140642

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Leeson Motors 140642, JM Pump, C213K34DK2, 7.5 HP, 213 Frame, 3470RPM, 230V, DP

Applications
Designed for various applications that you may find in the pumping industry where direct coupled motor to pump is required.
Features
NEMA 56 C-Face mounting face
Mechanically locked ball bearing on shaft-end, limits axial shaft movement
Quiet operation through Super Hush flow-through ventilation system
416 stainless steel shafts
Quick Connect terminals to reduce installation time
Auto re-set protectors
Stator windings impregnated with extra heavy varnish system
High overload capacities provided by high service factor ratings
Double-sealed ball bearings
UL and C.S.A recognized

Specifications

Brand
Leeson Motors
Catalog Number
140642
Type
Leeson Electric Motor
Series
JM Pump
Model Number
C213K34DK2
HP
7.5
Frame
213
RPM
3470RPM
Voltage
230V
Enclosure
DP
Warranty
1 Year
Notes
See Support Documents
