U.S. Motors

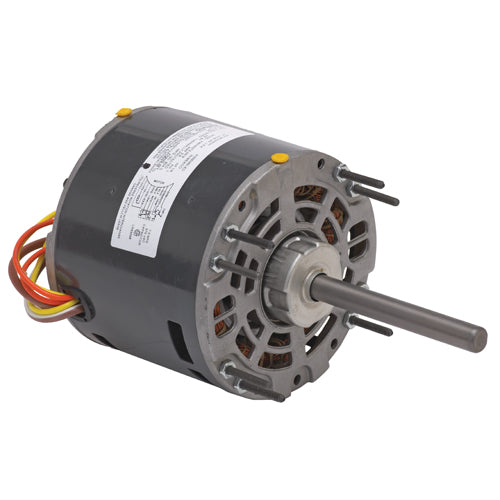

1390 U.S. Motors Permanent Split Cap. Direct Drive Fan Motor (1/4 HP, 115 Volts, 1050/3 RPM)

1390 U.S. Motors Permanent Split Cap. Direct Drive Fan Motor (1/4 HP, 115 Volts, 1050/3 RPM)

1390

$154.97 USD
$154.97 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson 1390 HP: 1/4, RPM: 1050/3, Volts: 115, Cap MFD: 7.5, Amps: 2.8, Bearings: Slv, Shaft Length (N): 4, Shell XI: 4.3, Total C: 8.9, Mount: Stud or Hub Ring Mount (2.5"),

Applications
Designed to meet manufacturer's requirements for use on direct drive fan & blowers
Features
Reversible Unless Noted Continuous Duty, Air Over
Sleeve Bearings Have All Angle Thrust System 24" Line Leads Unless Otherwise Noted
Designed for Use with 370V Capacitors Automatic Reset Thermal Overload Protector
Connection and Capacitor Information Furnished

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
1390
HP
1/4
RPM
1050/3
Volts
115
Cap MFD
7.5
Amps
2.8
Bearings
Slv
Shaft Length (N)
4
Apx. Wt. (lb)
13
Shell XI
4.3
Total C
8.9
Diameter
5.0" Diameter
Shaft
Single
Mount
Stud or Hub Ring Mount (2.5")
Enclosure
Open Air Over
Capacitor
Permanent Split
Type
Direct Drive Fan

Support Documents (pdf)

Product Literature
View full details
