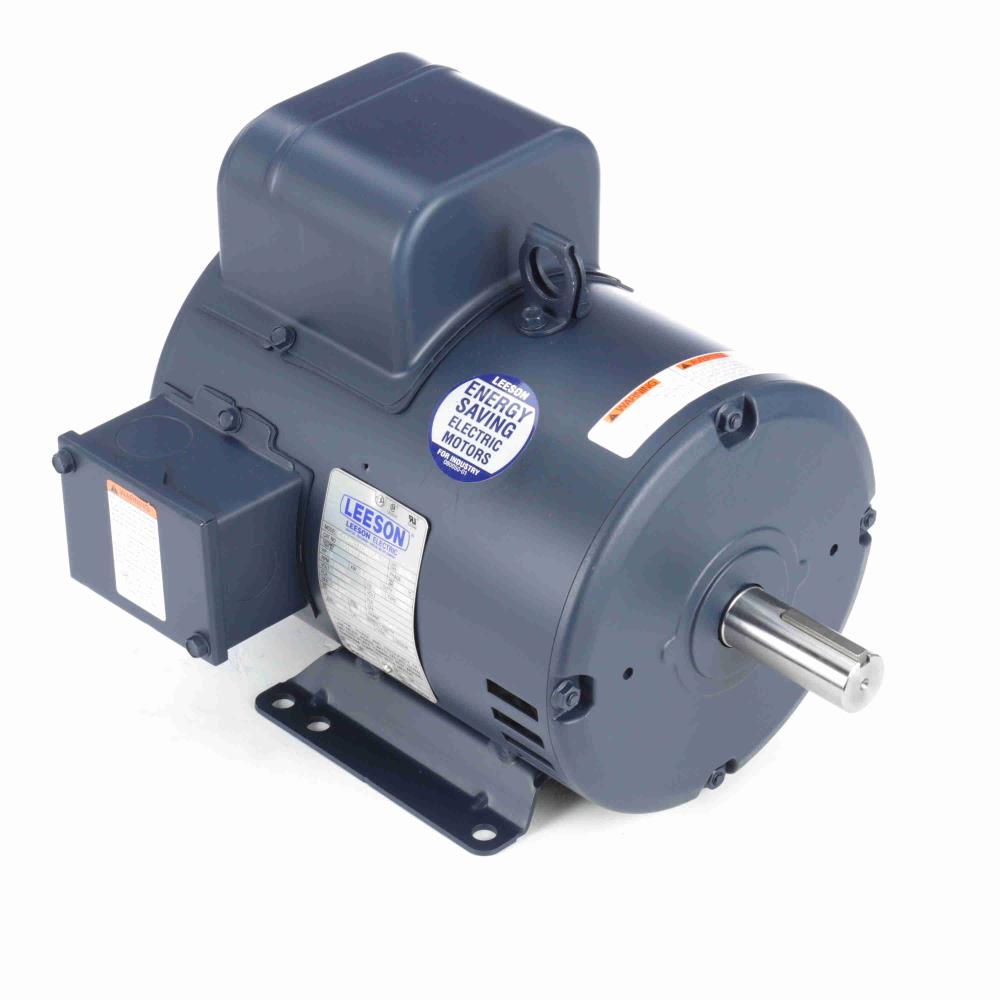

131537.00 Leeson Air Compressor Duty Motor (C184K17DB31, 5 HP, 184T Frame, 1740 RPM, 208-230 Volt, ODP Enclosure)

131537.00 Leeson Air Compressor Duty Motor (C184K17DB31, 5 HP, 184T Frame, 1740 RPM, 208-230 Volt, ODP Enclosure)

[COUNT] shoppers are looking at this right now

131537

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Leeson Motors 131537, Compressor Duty, C184K17DB31, 5 HP, 184 Frame, 1740RPM, 208-230V, DP

Applications
Motors designed for air compressors, pumps, and fan and blower applications, which require high breakdown torque and rugged mechanical construction.
Features
Pre-lubricated, amply sized, double shielded ball bearings to accommodate varying belt loads and tension
Heavy gauge steel frame/base construction
Class F copper windings and Class F insulation system
High starting and breakdown torque designs
Re-connectable leads for either CW or CCW rotation Manual protectors offered on ratings

Specifications

Brand
Leeson Motors
Catalog Number
131537
Type
Leeson Electric Motor
Series
Compressor Duty
Model Number
C184K17DB31
HP
5
Frame
184
RPM
1740RPM
Voltage
208-230V
Enclosure
DP
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
