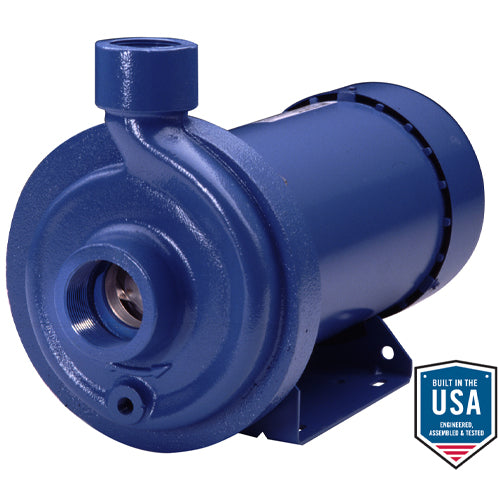

125MC1J2B0 Goulds MCC Series Cast Iron Centrifugal Pump (5 HP, 3 Phase, 60 Hz, 230-460 Volt, 3500 RPM, ODP Enclosure, 5.94" Impeller Size, 1-1/4" Discharge, 1-1/2" Suction, Cast Iron)

125MC1J2B0 Goulds MCC Series Cast Iron Centrifugal Pump (5 HP, 3 Phase, 60 Hz, 230-460 Volt, 3500 RPM, ODP Enclosure, 5.94" Impeller Size, 1-1/4" Discharge, 1-1/2" Suction, Cast Iron)

[COUNT] shoppers are looking at this right now

125MC1J2B0

$2,038.80 USD
$3,398.00 USD $2,038.80 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart

Goulds Pumps 125MC1J2B0, End Suction Centrifugal Pumps Type, 5 HP, 3/60/230-460 Driver Specs, DP Enclosure, 5.94" Impeller Size, Cast Iron Material,

Applications
The MCC series is a close coupled, end suction, centrifugal pump for general liquid transfer service, booster service and many other applications. The liquid pump end has a cast iron construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections.
Features
AISI 316L stainless steel impeller and seal housing for corrosion resistance, and improved strength and ductility
High efficiency enclosed impeller in 316L stainless steel maintains maximum efficiencies over the life of the pump without adjustment
Cast iron casing for strength and durability
Nine position casing rotation for easy piping
Standard John Crane mechanical seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts
Rugged ball bearing design for continuous duty under all operating conditions NEMA standard motor

Specifications

Brand
Goulds Pumps
Catalog Number
125MC1J2B0
Type
End Suction Centrifugal Pumps
Series
MCC
HP
5
Driver Specs
3/60/230-460
Enclosure
ODP
Impeller Size
5.94"
RPM
3500
Material
Cast Iron
Discharge
1-1/4"
Suction
1-1/2"
Pump Size
1-1/4" x 1-1/2" - 6
Notes
See Support Documents
