WEG

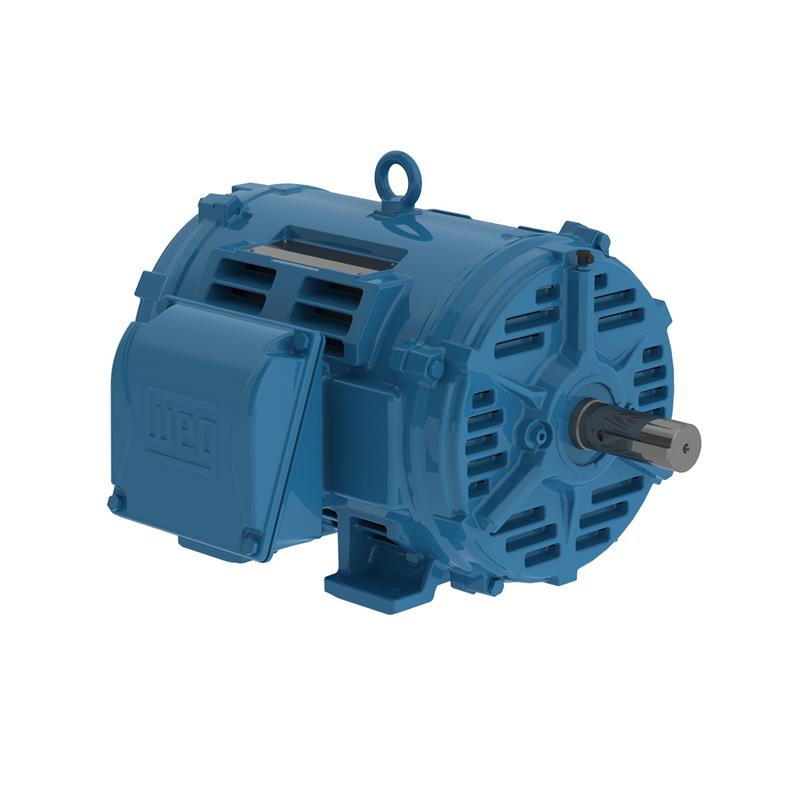

12518OT3E405TS-W40 WEG Motor (125 HP, 405TS FRAME, 460 V, THREE PHASE, ODP , 1780 RPM)

12518OT3E405TS-W40 WEG Motor (125 HP, 405TS FRAME, 460 V, THREE PHASE, ODP , 1780 RPM)

SKU:12518OT3E405TS-W40

Regular price $5,816.15 USD
Regular price Sale price $5,816.15 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 12518OT3E405TS, 125 HP, RPM: 1780, FRAME: 405TS, 460 V, THREE PHASE: 60 Hz, : ODP, WEG General Purpose Motor

Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
General Purpose Motor, 3-Phase, Rolled Steel or Cast Iron, NEMA Premium, ODP

Tech Specs

Brand
WEG Motors
Model Number
12518OT3E405TS
HP
125 HP
RPM
1780
FRAME
405TS
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
1144
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
142 A
LOCKED ROTOR CURRENT IL IN
8.2
LOCKED ROTOR CURRENT
1160 A
LOCKED ROTOR TORQUE
2.2
BREAKDOWN TORQUE
3
EFFICIENCY 50
94.5
EFFICIENCY 75
95.4
EFFICIENCY 100
95.4
POWER FACTOR 50
0.73
POWER FACTOR 75
0.83
POWER FACTOR 100
0.86
SERVICE FACTOR
1.15
INERTIA KGM2
1.1198 kgm
INERTIA SQ FT
26.573 sq.ft.
LOCKED ROTOR TIME
10 s
NOISE LEVEL
69 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP23
NO-LOAD CURRENT
54.0 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
493 Nm
FULL LOAD TORQUE FT
364 .ft
SLIP
0.0111
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
-
BEARINGS N D E
-
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
