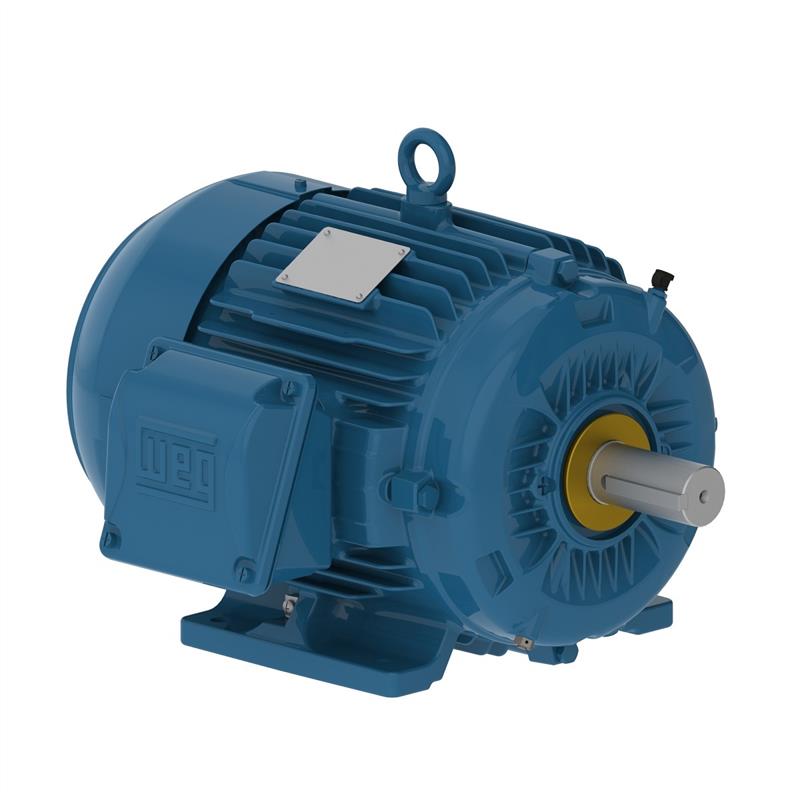

12512ST3QIE445T-W22 WEG Motor (125 HP, 444/5T FRAME, 460 V, THREE PHASE, TEFC , 1185 RPM)

12512ST3QIE445T-W22 WEG Motor (125 HP, 444/5T FRAME, 460 V, THREE PHASE, TEFC , 1185 RPM)

12512ST3QIE445T-W22

$14,690.14 USD
$14,690.14 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 12512ST3QIE445T-W22, 125 HP, RPM: 1185, FRAME: 444/5T, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Motor

Applications
Pumping applications, Pulp and paper mills, ical, Other
Features
IEEE 841 Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
12512ST3QIE445T-W22
HP
125 HP
RPM
1185
FRAME
444/5T
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT LB
1751
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
143 A
LOCKED ROTOR CURRENT IL IN
6.4
LOCKED ROTOR CURRENT
915 A
LOCKED ROTOR TORQUE
2.1
BREAKDOWN TORQUE
2.4
EFFICIENCY 50
95
EFFICIENCY 75
95.4
EFFICIENCY 100
95
POWER FACTOR 50
0.7
POWER FACTOR 75
0.79
POWER FACTOR 100
0.83
SERVICE FACTOR
1.15
INERTIA KGM2
4.3667 kgm
INERTIA SQ FT LB
103.62 sq.ft.
LOCKED ROTOR TIME
19 s
NOISE LEVEL
69 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
56.0 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
741 Nm
FULL LOAD TORQUE LB FT
547 .ft
SLIP
0.0125
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6319 C3
BEARINGS N D E
6316 C3
REGREASING INTERVAL D E
13000 h
REGREASING INTERVAL N D E
16000 h
GREASE AMOUNT D E
45 g
GREASE AMOUNT N D E
34 g
-
-
