WEG

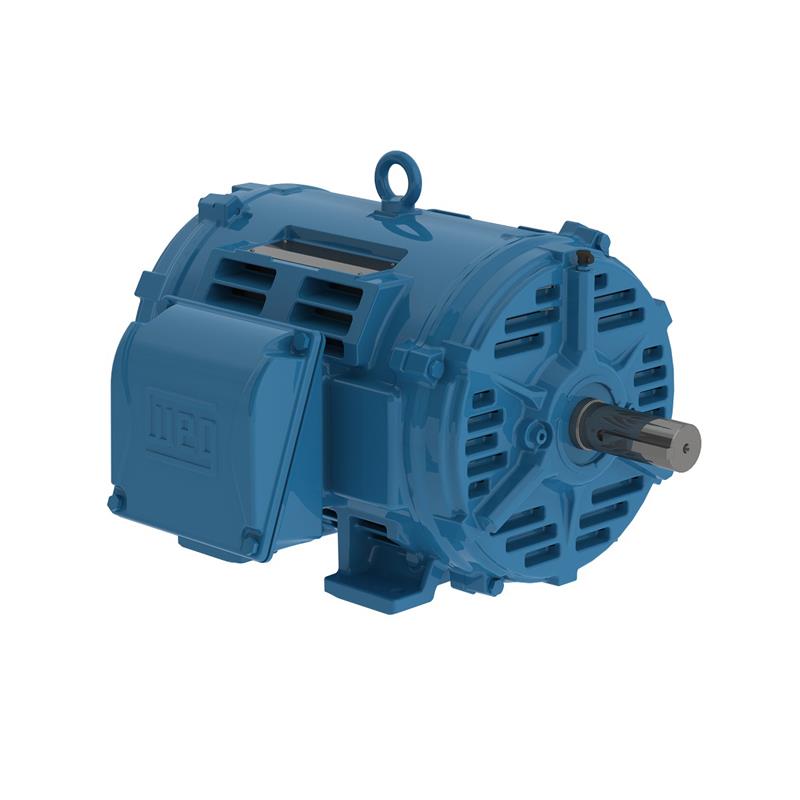

12512OT3G445T-W40 WEG Motor (125 HP, 444/5T FRAME, 460 V, THREE PHASE, ODP , 1185 RPM)

12512OT3G445T-W40 WEG Motor (125 HP, 444/5T FRAME, 460 V, THREE PHASE, ODP , 1185 RPM)

SKU:12512OT3G445T-W40

Regular price $9,293.75 USD
Regular price Sale price $9,293.75 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 12512OT3G445T, 125 HP, RPM: 1185, FRAME: 444/5T, 460 V, THREE PHASE: 60 Hz, : ODP, WEG General Purpose Motor

Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
General Purpose Motor, 3-Phase, Rolled Steel or Cast Iron, NEMA Premium, ODP

Tech Specs

Brand
WEG Motors
Model Number
12512OT3G445T
HP
125 HP
RPM
1185
FRAME
444/5T
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
1740
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
158 A
LOCKED ROTOR CURRENT IL IN
6.7
LOCKED ROTOR CURRENT
1060 A
LOCKED ROTOR TORQUE
2.4
BREAKDOWN TORQUE
2.4
EFFICIENCY 50
94.5
EFFICIENCY 75
95
EFFICIENCY 100
95
POWER FACTOR 50
0.6
POWER FACTOR 75
0.72
POWER FACTOR 100
0.78
SERVICE FACTOR
1.15
INERTIA KGM2
2.9877 kgm
INERTIA SQ FT
70.899 sq.ft.
LOCKED ROTOR TIME
20 s
NOISE LEVEL
78 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP23
NO-LOAD CURRENT
76.0 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
741 Nm
FULL LOAD TORQUE FT
547 .ft
SLIP
0.0125
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6319 C3
BEARINGS N D E
6316 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
45 g
GREASE AMOUNT N D E
34 g

View full details
