Leeson

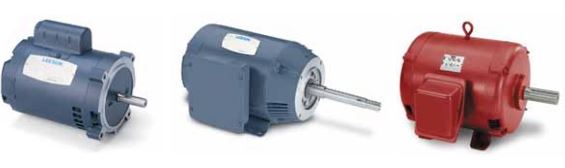

114205.00 Leeson General Purpose Pump Motor (C6T34FC40, 2 HP, 56 Frame, 3450RPM, 208-230/460V, TEFC)
114205.00 Leeson General Purpose Pump Motor (C6T34FC40, 2 HP, 56 Frame, 3450RPM, 208-230/460V, TEFC)
[COUNT] shoppers are looking at this right now
No reviews
SKU:114205
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Leeson Motors 114205, Jet Pump, C6T34FC40, 2 HP, 56 Frame, 3450RPM, 208-230/460V, TEFC
| Applications | |
| Designed for various applications that you may find in the pumping industry where direct coupled motor to pump is required. | |
| Features | |
| NEMA 56 C-Face mounting face | |
| Mechanically locked ball bearing on shaft-end, limits axial shaft movement | |
| Quiet operation through Super Hush flow-through ventilation system | |
| 416 stainless steel shafts | |
| Quick Connect terminals to reduce installation time | |
| Auto re-set protectors | |
| Stator windings impregnated with extra heavy varnish system | |
| High overload capacities provided by high service factor ratings | |
| Double-sealed ball bearings | |
| UL and C.S.A recognized | |
|
Specifications |
|
|
Brand
|
Leeson Motors
|
|
Catalog Number
|
114205
|
|
Type
|
Leeson Electric Motor
|
|
Series
|
Jet Pump
|
|
Model Number
|
C6T34FC40
|
|
HP
|
2
|
|
Frame
|
56
|
|
RPM
|
3450RPM
|
|
Voltage
|
208-230/460V
|
|
Enclosure
|
TEFC
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
