Leeson

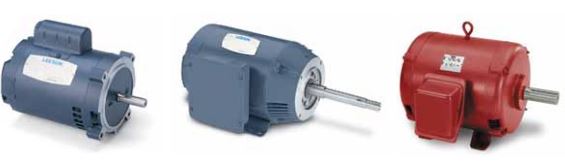

113959.00 Leeson Motors (U6C34FK55 , 2 HP, 56 Frame, 3450RPM, 115/208-230V, TEFC)

113959.00 Leeson Motors (U6C34FK55 , 2 HP, 56 Frame, 3450RPM, 115/208-230V, TEFC)

113959

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

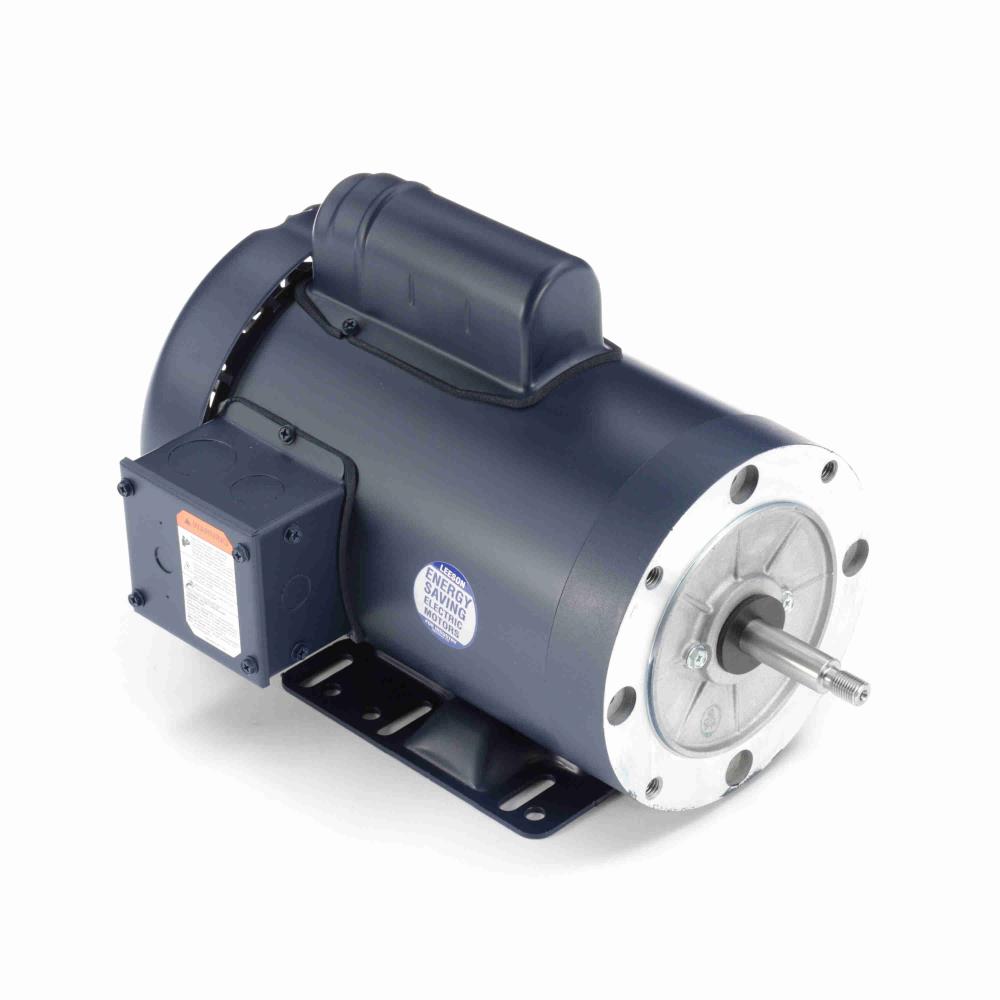

Leeson Motors 113959, Jet Pump, U6C34FK55 , 2 HP, 56 Frame, 3450RPM, 115/208-230V, TEFC

Applications
Designed for various applications that you may find in the pumping industry where direct coupled motor to pump is required.
Features
NEMA 56 C-Face mounting face
Mechanically locked ball bearing on shaft-end, limits axial shaft movement
Quiet operation through Super Hush flow-through ventilation system
416 stainless steel shafts
Quick Connect terminals to reduce installation time
Auto re-set protectors
Stator windings impregnated with extra heavy varnish system
High overload capacities provided by high service factor ratings
Double-sealed ball bearings
UL and C.S.A recognized

Specifications

Brand
Leeson Motors
Catalog Number
113959
Type
Leeson Electric Motor
Series
Jet Pump
Model Number
U6C34FK55
HP
2
Frame
56
RPM
3450RPM
Voltage
115/208-230V
Enclosure
TEFC
Warranty
1 Year
Notes
See Support Documents
