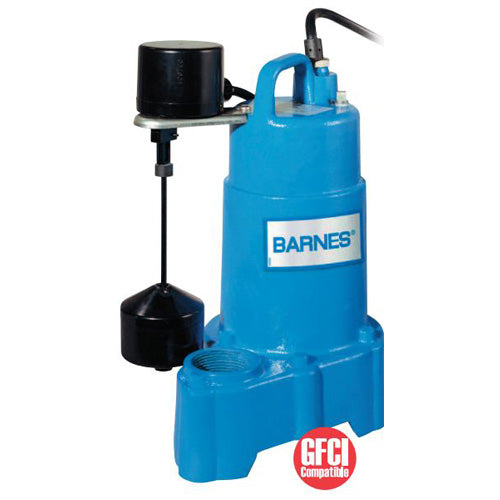

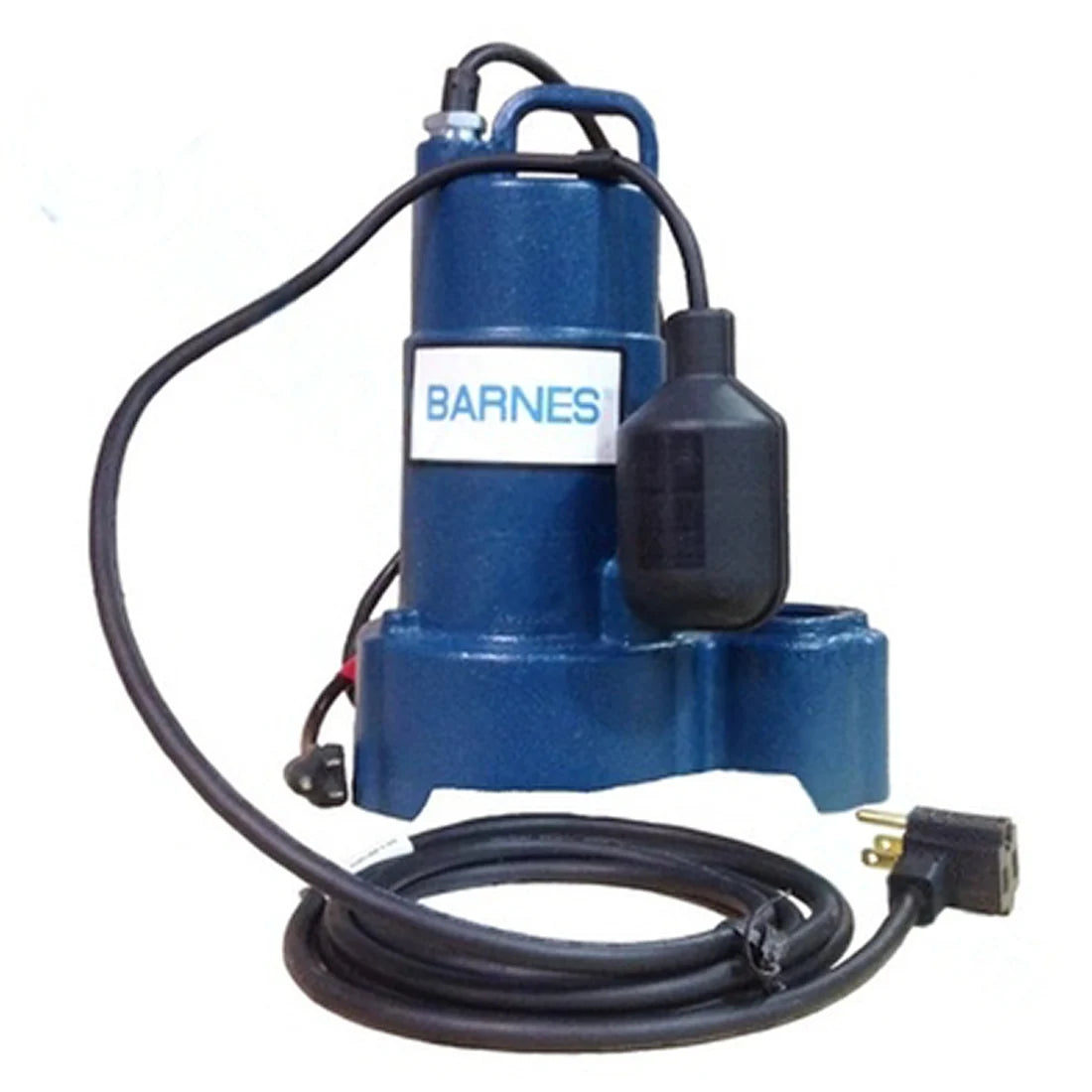

112549 Barnes Submersible Effluent Pumps (SP33A, 1/3 HP, 120 Volt, 1 Phase, 1-1/2" NPT Discharge, 3450 RPM, 10' Cord, Automatic)
112549 Barnes Submersible Effluent Pumps (SP33A, 1/3 HP, 120 Volt, 1 Phase, 1-1/2" NPT Discharge, 3450 RPM, 10' Cord, Automatic)
SKU:112549
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Barnes 112549, Submersible Effluent Pump Series SP33 Series, SP33A Catalog Number, 1/3 HP, 120/1 V/PH, 1 1/2" NPT Discharge
Barnes SP33, SP50, & SP75 effluent pumps feature low cost, high performance benefits from a rugged, heavy duty design. With upper and lower ball bearings and a heavy duty cast iron vortex impeller, Barnes SP33, SP50 & SP75 effluent pumps are robustly designed for long operational life and dependable service. They are further enhanced by a stainless steel shaft and hardware, plus an industrial grade mechanical seal.
| Applications |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. |
| Features |
| Cast Iron Construction. |
| Maximum flow rate to 80gpm (SP75), 66gpm (SP50), 50gpm, (SP33) |
| GFCI compatible for safety |
| Maximum shutoff head of 33' |
| Permanent split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw |
| Cast Iron Vortex Impeller. |
|
Specifications |
|
|
Brand
|
Barnes
|
|
Part Number
|
112549
|
|
Type
|
Effluent Pump
|
|
Series
|
Submersible Effluent Pump Series SP33
|
|
Catalog Number
|
SP33A
|
|
HP
|
1/3
|
|
V/PH
|
120/1
|
|
Hz
|
60
|
|
Discharge
|
1-1/2" NPT
|
|
Solids (Inches)
|
1/2"
|
|
Automatic
|
Yes
|
|
RPM
|
3450
|
|
NEMA START CODE
|
B
|
|
FULL LOAD AMPS
|
5.8
|
|
CORD LENGTH
|
10 ft. (3m)
|
|
CORD SIZE
|
18/3
|
|
CORD TYPE
|
SJTOW
|
|
Warranty
|
1 Year
|
