Barnes Pumps

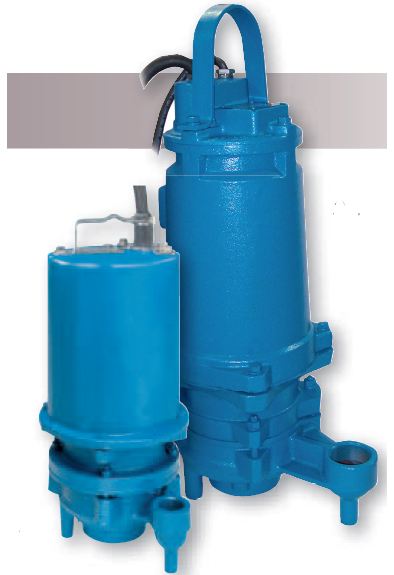

111616 Crane Barnes SGV Series Grinder Pump (SGV5032L Model, 5 HP, 240 Volt, 3 Phase, 2" NPT Vertical Discharge, 3450 RPM, 110 GPM Max, 150' Max Head, 30' Cord, Manual)
111616 Crane Barnes SGV Series Grinder Pump (SGV5032L Model, 5 HP, 240 Volt, 3 Phase, 2" NPT Vertical Discharge, 3450 RPM, 110 GPM Max, 150' Max Head, 30' Cord, Manual)
[COUNT] shoppers are looking at this right now
No reviews
SKU:111616
Regular price
$6,959.33 USD
Regular price
$10,439.00 USD
Sale price
$6,959.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Barnes 111616, Submersible Grinder Pump Series SGV Series, SGV5032L Catalog Number, 5 HP, 240/3 VOLT/PH, 2" NPT Discharge
| Applications | |
| THE GRINDER PUMP IS DESIGNED TOREDUCE DOMESTIC, COMMERCIAL,INSTITUTIONAL AND LIGHT INDUSTRIALSEWAGE TO A FINELY GROUND SLURRY. | |
| Features |
|
Specifications |
|
|
Brand
|
Barnes
|
|
Part Number
|
111616
|
|
Type
|
Grinder Pump
|
|
Series
|
Submersible Grinder Pump Series SGV
|
|
Catalog Number
|
SGV5032L
|
|
HP
|
5
|
|
VOLT/PH
|
240/3
|
|
Hz
|
60
|
|
Discharge
|
2" NPT
|
|
RPM
|
3450
|
|
NEMA START CODE
|
L
|
|
FULL LOAD AMPS
|
21.9
|
|
LOCKED ROTOR AMPS
|
120
|
|
CORD SIZE
|
10/4
|
|
CORD TYPE
|
SOW
|
|
CORD O.D. .02 (.5) in (mm)
|
.75 (19)
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
