Barnes Pumps

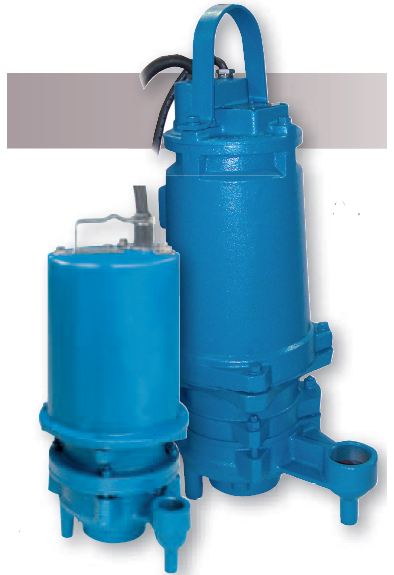

111614 Barnes Grinder Pump (SGV7542L , 7.5 HP, 480 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)
111614 Barnes Grinder Pump (SGV7542L , 7.5 HP, 480 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:111614
Regular price
$8,498.00 USD
Regular price
$12,747.00 USD
Sale price
$8,498.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Barnes 111614, Submersible Grinder Pump Series SGV Series, SGV7542L Catalog Number, 7.5 HP, 480/3 VOLT/PH, 2" NPT Discharge
| Applications | |
| THE GRINDER PUMP IS DESIGNED TO REDUCE DOMESTIC, COMMERCIAL, INSTITUTIONAL AND LIGHT INDUSTRIAL SEWAGE TO A FINELY GROUND SLURRY. | |
| Features |
Specifications | |
Brand |
Barnes |
Part Number |
111614 |
Type |
Grinder Pump |
Series |
Submersible Grinder Pump Series SGV |
Catalog Number |
SGV7542L |
HP |
7.5 |
VOLT/PH |
480/3 |
Hz |
60 |
Discharge |
2" NPT |
RPM |
3450 |
NEMA START CODE |
J |
FULL LOAD AMPS |
11.2 |
LOCKED ROTOR AMPS |
68 |
CORD SIZE |
10/4 |
CORD TYPE |
SOW |
CORD O.D. .02 (.5) in (mm) |
.75 (19) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
