Barnes Pumps

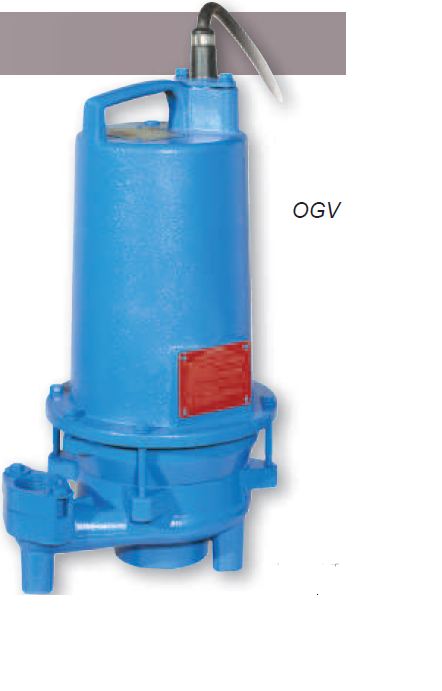

110651 Barnes High Flow Grinder Pump (OGVF2022L, 2 HP, 240 Volt, Single Phase, 1-1/4" NPT Discharge, 3450 RPM, 30' Cord)
110651 Barnes High Flow Grinder Pump (OGVF2022L, 2 HP, 240 Volt, Single Phase, 1-1/4" NPT Discharge, 3450 RPM, 30' Cord)
[COUNT] shoppers are looking at this right now
SKU:110651
Regular price
$3,892.00 USD
Regular price
$5,838.00 USD
Sale price
$3,892.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Barnes 110651, Submersible Grinder Pump Series OGVF & OGVH Series, OGVF2022L Catalog Number, 2 HP, 240 VOLT, 1 1/4" NPT Discharge
| Applications | |
| THE GRINDER PUMP IS DESIGNED TOREDUCE DOMESTIC, COMMERCIAL,INSTITUTIONAL AND LIGHT INDUSTRIALSEWAGE TO A FINELY GROUND SLURRY. | |
| Features | |
| Pump Support Stand | |
| Break Away Fitting or moveable slide rail fitting | |
| ESPS (Environmentally Sealed Pressure Switch) Level Controls | |
|
Specifications |
|
|
Brand
|
Barnes
|
|
Part Number
|
110651
|
|
Type
|
Grinder Pump
|
|
Series
|
Submersible Grinder Pump Series OGVF & OGVH
|
|
Catalog Number
|
OGVF2022L
|
|
HP
|
2
|
|
VOLT
|
240
|
|
PH/Hz
|
1 / 60
|
|
Discharge
|
1-1/4" NPT
|
|
RPM
|
3450
|
|
NEMA START CODE
|
H
|
|
FULL LOAD AMPS
|
15
|
|
LOCKED ROTOR AMPS
|
53.8
|
|
CORD SIZE
|
12/3
|
|
CORD TYPE
|
SOW
|
|
CORD O.D. .02 (.5) in (mm)
|
0.61 (15.50)
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
