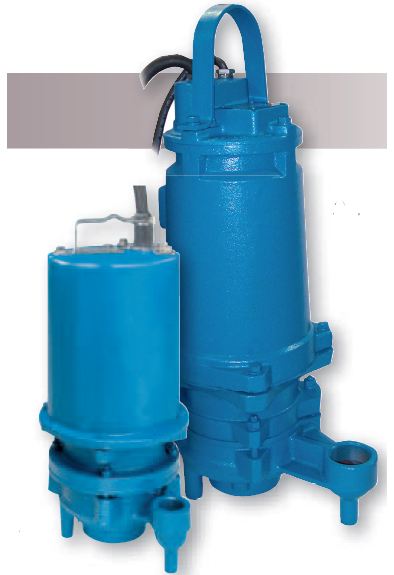

110620 Barnes Grinder Pump (SGVH2002L , 2 HP, 200 VOLT, 1 1/4" NPT Discharge, 3450 RPM)
110620 Barnes Grinder Pump (SGVH2002L , 2 HP, 200 VOLT, 1 1/4" NPT Discharge, 3450 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:110620
Regular price
$3,973.33 USD
Regular price
$5,960.00 USD
Sale price
$3,973.33 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Barnes 110620, Submersible Grinder Pump Series SGVF & SGVH Series, SGVH2002L Catalog Number, 2 HP, 200 VOLT, 1 1/4" NPT Discharge
| Applications | |
| THE GRINDER PUMP IS DESIGNED TOREDUCE DOMESTIC, COMMERCIAL,INSTITUTIONAL AND LIGHT INDUSTRIALSEWAGE TO A FINELY GROUND SLURRY. | |
| Features | |
| Barnes SGV heavy-duty grinder pump for trouble-free operation in commercial and residential applications. | |
| Cast iron vortex impeller handles sewage slurry with no possibility of clogging. | |
| Exclusive Slicerator easily reduces solids to a fine slurry. | |
| Double mechanical seal operates in a clean oil environment for maximum life. | |
| Optional moisture detector available. | |
| Oil-filled motor provides outstanding cooling as well as an ideal environment for optimum bearing life. | |
| Exclusive quick connect power cord is pre-wired, one plug makes installation quick and easy while startup problems are virtually eliminated. | |
| Custom molded design seals tight and reduces strain. | |
Specifications | |
Brand |
Barnes |
Part Number |
110620 |
Type |
Grinder Pump |
Series |
Submersible Grinder Pump Series SGVF & SGVH |
Catalog Number |
SGVH2002L |
HP |
2 |
VOLT |
200 |
PH/Hz |
1 / 60 |
Discharge |
1 1/4" NPT |
RPM |
3450 |
NEMA START CODE |
F |
FULL LOAD AMPS |
17 |
LOCKED ROTOR AMPS |
53 |
CORD SIZE |
12/4 |
CORD TYPE |
SOW |
CORD O.D. .02 (.5) in (mm) |
.67 (17) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
