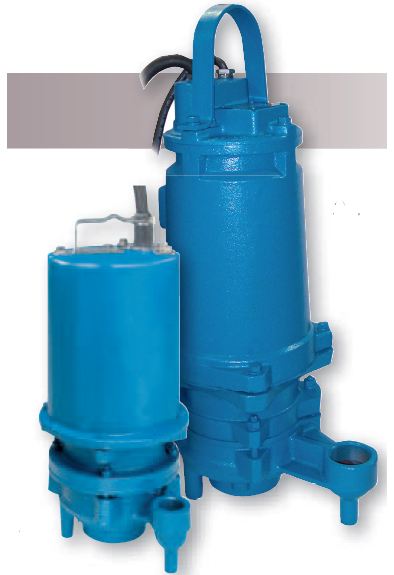

110610 Barnes Grinder Pump (SGVF2062L , 2 HP, 200 VOLT, 1 1/4" NPT Discharge, 3450 RPM)

110610 Barnes Grinder Pump (SGVF2062L , 2 HP, 200 VOLT, 1 1/4" NPT Discharge, 3450 RPM)

SKU:110610

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Barnes 110610, Submersible Grinder Pump Series SGVF & SGVH Series, SGVF2062L Catalog Number, 2 HP, 200 VOLT, 1 1/4" NPT Discharge

Applications
THE GRINDER PUMP IS DESIGNED TOREDUCE DOMESTIC, COMMERCIAL,INSTITUTIONAL AND LIGHT INDUSTRIALSEWAGE TO A FINELY GROUND SLURRY.
Features
Barnes SGV heavy-duty grinder pump for trouble-free operation in commercial and residential applications.
Cast iron vortex impeller handles sewage slurry with no possibility of clogging.
Exclusive Slicerator easily reduces solids to a fine slurry.
Double mechanical seal operates in a clean oil environment for maximum life.
Optional moisture detector available.
Oil-filled motor provides outstanding cooling as well as an ideal environment for optimum bearing life.
Exclusive quick connect power cord is pre-wired, one plug makes installation quick and easy while startup problems are virtually eliminated.
Custom molded design seals tight and reduces strain.

Specifications

Brand
Barnes
Part Number
110610
Type
Grinder Pump
Series
Submersible Grinder Pump Series SGVF & SGVH
Catalog Number
SGVF2062L
HP
2
VOLT
200
PH/Hz
3 / 60
Discharge
1 1/4" NPT
RPM
3450
NEMA START CODE
J
FULL LOAD AMPS
11
LOCKED ROTOR AMPS
42
CORD SIZE
12/4
CORD TYPE
SOW
CORD O.D. .02 (.5) in (mm)
.67 (17)
Warranty
1 Year
Notes
See Support Documents
