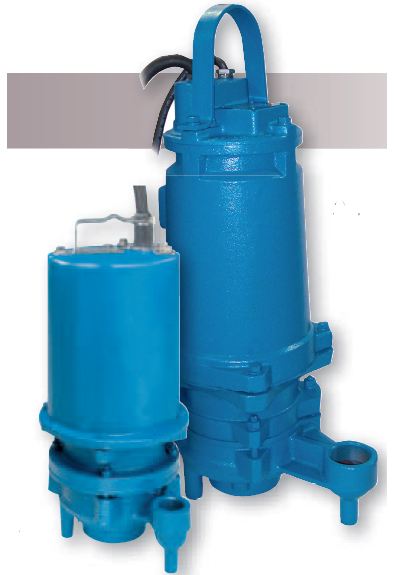

110609 Barnes Grinder Pump (SGVF2022L , 2 HP, 240 VOLT, 1 1/4" NPT Discharge, 3450 RPM)

110609 Barnes Grinder Pump (SGVF2022L , 2 HP, 240 VOLT, 1 1/4" NPT Discharge, 3450 RPM)

110609

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Barnes 110609, Submersible Grinder Pump Series SGVF & SGVH Series, SGVF2022L Catalog Number, 2 HP, 240 VOLT, 1 1/4" NPT Discharge

Applications
THE GRINDER PUMP IS DESIGNED TOREDUCE DOMESTIC, COMMERCIAL,INSTITUTIONAL AND LIGHT INDUSTRIALSEWAGE TO A FINELY GROUND SLURRY.
Features
Barnes SGV heavy-duty grinder pump for trouble-free operation in commercial and residential applications.
Cast iron vortex impeller handles sewage slurry with no possibility of clogging.
Exclusive Slicerator easily reduces solids to a fine slurry.
Double mechanical seal operates in a clean oil environment for maximum life.
Optional moisture detector available.
Oil-filled motor provides outstanding cooling as well as an ideal environment for optimum bearing life.
Exclusive quick connect power cord is pre-wired, one plug makes installation quick and easy while startup problems are virtually eliminated.
Custom molded design seals tight and reduces strain.

Specifications

Brand
Barnes
Part Number
110609
Type
Grinder Pump
Series
Submersible Grinder Pump Series SGVF & SGVH
Catalog Number
SGVF2022L
HP
2
VOLT
240
PH/Hz
1 / 60
Discharge
1 1/4" NPT
RPM
3450
NEMA START CODE
H
FULL LOAD AMPS
15
LOCKED ROTOR AMPS
53.8
CORD SIZE
12/4
CORD TYPE
SOW.
CORD O.D. .02 (.5) in (mm)
.67 (17)
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
