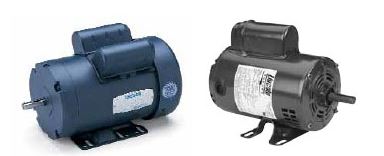

110451.00 Leeson General Purpose Motor (C6T17FC9 , 2 HP, 56 Frame, 1725RPM, 208-230/460V, TEFC)

110451.00 Leeson General Purpose Motor (C6T17FC9 , 2 HP, 56 Frame, 1725RPM, 208-230/460V, TEFC)

[COUNT] shoppers are looking at this right now

110451

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Leeson Motors 110451, General Purpose, C6T17FC9 , 2 HP, 56 Frame, 1725RPM, 208-230/460V, TEFC

Applications
ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.TEFC Models: For use where exposure to water, dust and corrosives exists. Ideally suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.
Features
Durable rolled steel frame
Class B insulation
High-quality ball bearings
Easy-to-read nameplate
Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation.
UL Recognized Component Listing and CSA approval.
Warranty 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

Specifications

Brand
Leeson Motors
Catalog Number
110451
Type
Leeson Electric Motor
Series
General Purpose
Model Number
C6T17FC9
HP
2
Frame
56
RPM
1725RPM
Voltage
208-230/460V
Enclosure
TEFC
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
