Leeson

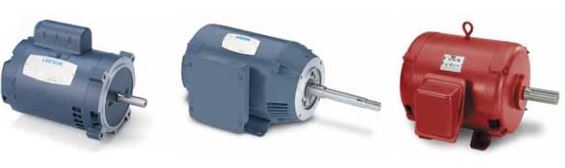

110292.00 Leeson Motors (U6C34DC21 , 1.5 HP, 56 Frame, 3450RPM, 115/208-230V, DP)

110292.00 Leeson Motors (U6C34DC21 , 1.5 HP, 56 Frame, 3450RPM, 115/208-230V, DP)

SKU:110292

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Leeson Motors 110292, Jet Pump, U6C34DC21 , 1.5 HP, 56 Frame, 3450RPM, 115/208-230V, DP

Applications
Designed for various applications that you may find in the pumping industry where direct coupled motor to pump is required.
Features
NEMA 56 C-Face mounting face
Mechanically locked ball bearing on shaft-end, limits axial shaft movement
Quiet operation through Super Hush flow-through ventilation system
416 stainless steel shafts
Quick Connect terminals to reduce installation time
Auto re-set protectors
Stator windings impregnated with extra heavy varnish system
High overload capacities provided by high service factor ratings
Double-sealed ball bearings
UL and C.S.A recognized

Specifications

Brand
Leeson Motors
Catalog Number
110292
Type
Leeson Electric Motor
Series
Jet Pump
Model Number
U6C34DC21
HP
1.5
Frame
56
RPM
3450RPM
Voltage
115/208-230V
Enclosure
DP
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
View full details
