Leeson

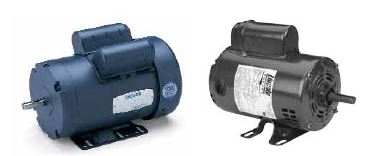

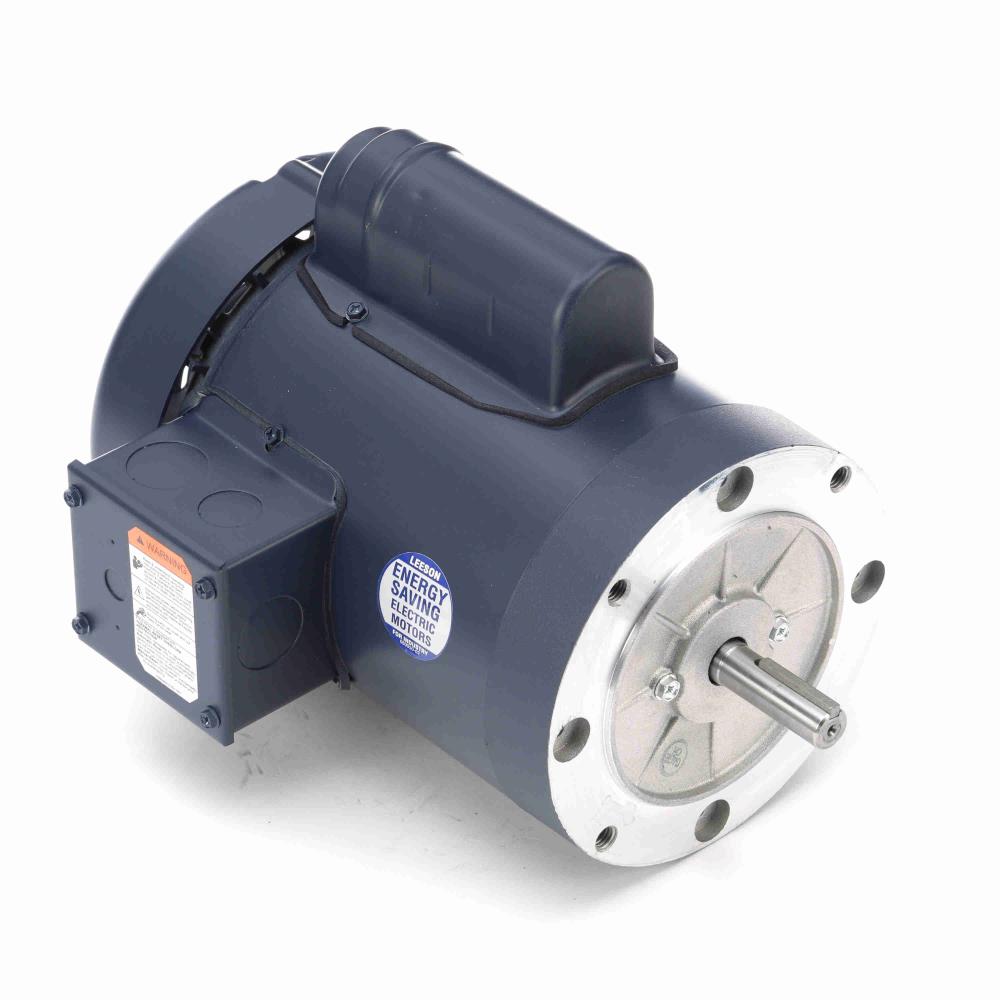

110058.00 Leeson General Purpose Motor (C6C17FC7, 1 HP, 56 Frame, 1725RPM, 115/208-230 Volt, TEFC Enclosure)
110058.00 Leeson General Purpose Motor (C6C17FC7, 1 HP, 56 Frame, 1725RPM, 115/208-230 Volt, TEFC Enclosure)
[COUNT] shoppers are looking at this right now
No reviews
SKU:110058
Regular price
$640.91 USD
Regular price
Sale price
$640.91 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Leeson Motors 110058, General Purpose, C6C17FC7 , 1 HP, 56 Frame, 1725RPM, 115/208-230V, TEFC
| Applications |
| ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications. TEFC Models: For use where exposure to water, dust and corrosives exists. Ideally suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. |
| Features |
| Durable rolled steel frame |
| Class B insulation |
| High-quality ball bearings |
| Easy-to-read nameplate |
| Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. |
| UL Recognized Component Listing and CSA approval. |
| Warranty 12 months from date of first use or 18 months from date of manufacture, whichever comes first. |
|
Specifications |
|
|
Brand
|
Leeson Motors
|
|
Catalog Number
|
110058
|
|
Type
|
Leeson Electric Motor
|
|
Series
|
General Purpose
|
|
Model Number
|
C6C17FC7
|
|
HP
|
1
|
|
Frame
|
56
|
|
RPM
|
1725RPM
|
|
Voltage
|
115/208-230V
|
|
Enclosure
|
TEFC
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
